Browser: Interactive browsing of ghk data files

Introduction

The Browser module in Pundit Vision software enables the visualisation of 3D reconstructed images. The image can be investigated by scrolling through slices in the volume and the projected view allows the simultaneous observation of differents plane view. It also allows iso-surface representation of the main features (e.g., voids, rebars, tendon duct, or backwall) detected in the image. Multiple Browser windows can be synchronised, which facilitate the comparison of several 3D reconstructed images. Additionaly, the Browser window can be synchronised with the phase evaluation module.

Main Functionalities

Important:

Browser module requires files to be in ghk format. Therefore, before using the Browser module, the csv raw data files obtained with the Pundit equipement must be converted using the ‘Convert from pundit csv’ module and the 3D reconstructed image must have been processed and saved as ghk format with the ‘Inter_saft’ module.

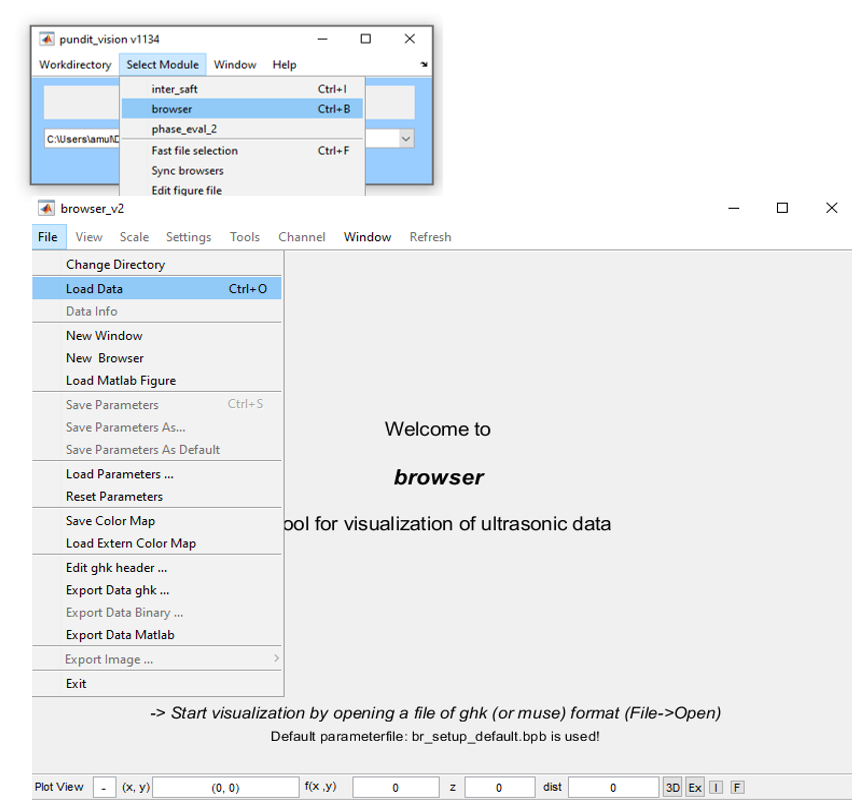

Open_and_Load_Data

A short description of the browser’s functionalities appears when leaving the mouse still for a few second above an icon.

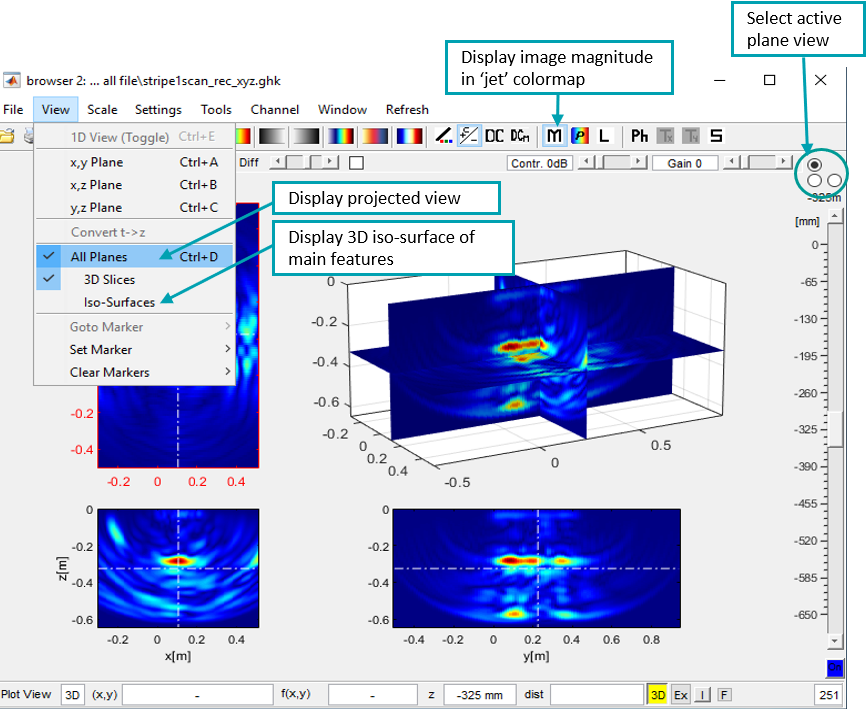

browser_features

The different synchronisation tools can be found as described below:

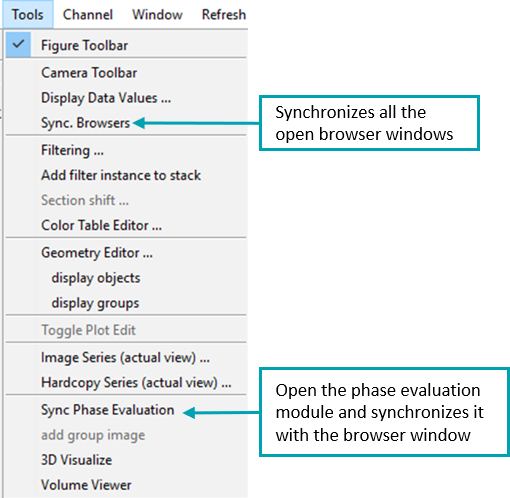

synchro_Phase_Browser
