Welcome¶
Pundit Vision is a collection of software modules to facilitate the examination of ultrasonic data. Based on some fundamental data or signal processing schemes it should give you the opportunity to increase the possibilities of data interpretation in comparison to the software given to you by your hardware provider. The current implementation of Pundit Vision is written in a Matlab™ environment to increase the possibility for fast user specific adaptations and for being platform independent.

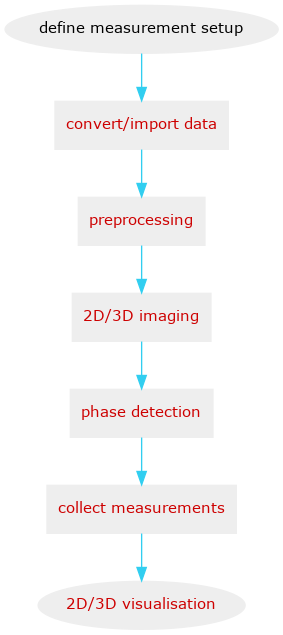

![digraph flow {
node [fontname=Verdana,fontsize=11]
node [style=filled]
node [fillcolor="#EEEEEE"]
node [color="#EEEEEE"]
edge [color="#31CEF0"]
a [label="define measurement setup",href="", target="_top"];
b [label="convert/import data", href="tools/convert_pundit.html",shape=box, target="_top", fontcolor=red3];
c [label="preprocessing", href="saft_docs/signalprocessing.html",shape=box, target="_top", fontcolor=red3];
d [label="2D/3D imaging",href="saft_docs/two.html#using-the-software",shape=box, target="_top", fontcolor=red3];
f [label="phase detection",href="phase_docs/one.html#using-the-software",shape=box, target="_top", fontcolor=red3];
g [label="collect measurements",href="tools/cm_docs/index.html",shape=box, target="_top", fontcolor=red3];
h [label="2D/3D visualisation",href="browser_docs/index.html", target="_top", fontcolor=red3];
a ->b ->c -> d -> f -> g -> h
}](../_images/graphviz-e08e00300f04f217590cf8f443408a809c3a5cf3.png)
Main features¶
Flexible interface to user specific binary data.
Two- and three-dimensional imaging methods based on SAFT and FT-SAFT techniques.
Preprocessing, filtering, convolution and deconvolution of the data by Fourier techniques.
Visualization of data and results by 2D and 3D graphics output.
Post processing by Phase Detection and envelope processing.
Collecting data of different measurement sections
Documentation¶
First steps:
Examples of application and step by step guides:
Module descriptions:
Module to prepare your data for Pundit Vision - rf_header
Main module for interactive SAFT processing - InterSAFT
Module for interactive visualization - Browser
Module for phase detection and visualization - PhaseEval
Module for surface wave evaluation and suppression - surface_waves
Module for collecting measurement sections - CollectMeasurement
Software availability¶
Please ask us how you can get the software. https://www.proceq.com/contact/contact-forms/
