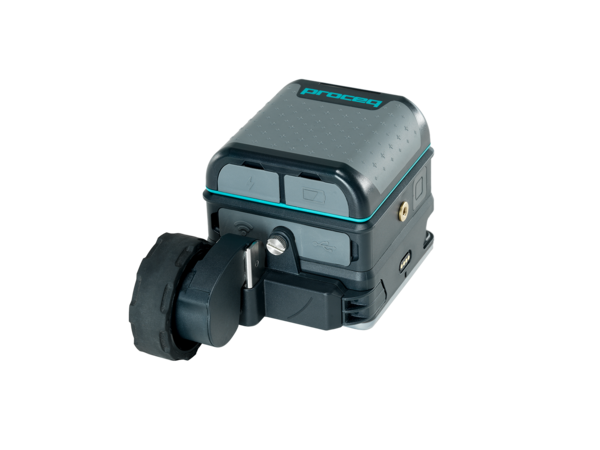

GP8800

Concrete inspections and structural imaging with SFCW ground penetrating radar technology now fits at the palm of your hand

  • Superior insights thanks to unparalleled depth and clarity of data from the powerful probe
  • Easy to learn and to operate with our user-friendly, feature-rich, intelligent software
  • Unmatched productivity through user-centric inspection ergonomics and digital workflow

Applications:

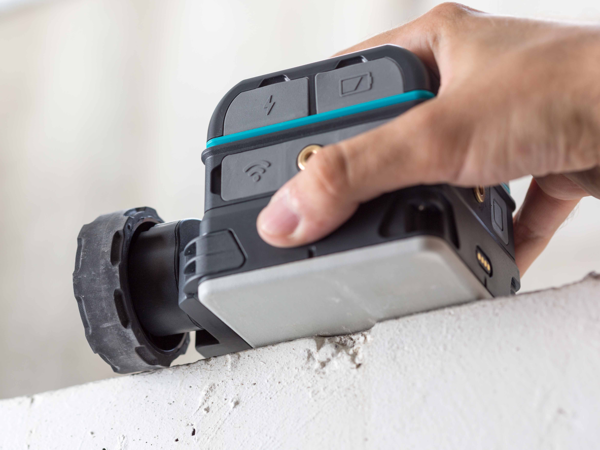

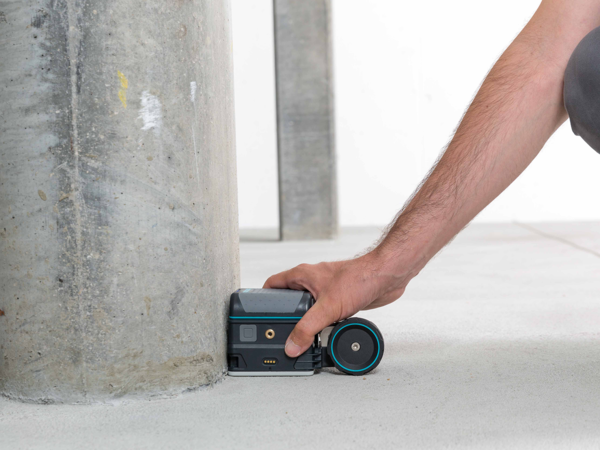

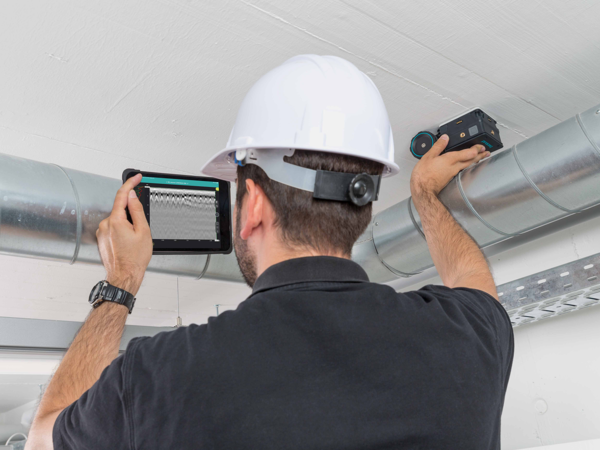

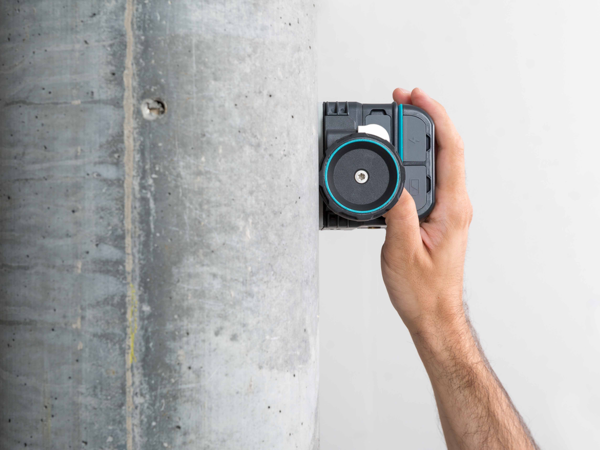

Congested rebar configurations / Areas close to walls & underneath pipes / Irregular and curved surfaces / Concrete Quality Assessment

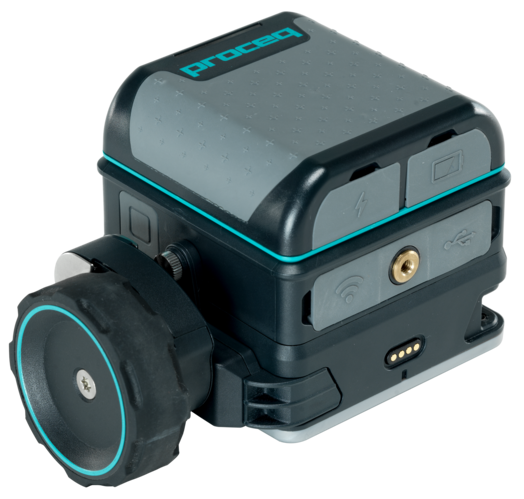

Gigantic clarity. Tiny size.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Performance.svg
Performance
Superior depth and clarity of data thanks to the unique Swiss Made radar technology with all the frequencies you’ll ever need. Immediate insights with 3D and Augmented Reality.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Versatility

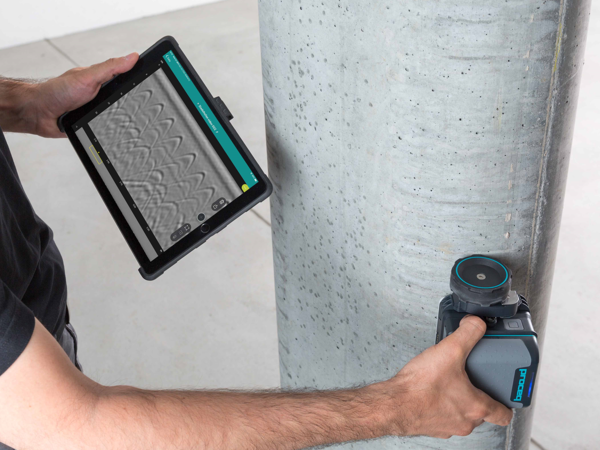

Inspect with ease of use, from the tightest spots to the tallest walls to the longest streets. Superior ergonomics to tackle any challenge with comfort, without cables.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Productivity-17.svg
Productivity
A mobile app that lets you annotate measurements with voice, photos and comments. Generate reports and share them instantly. Access your data from anywhere, anytime.
Proceq GPR App
The next stage of evolution
  • Free updates & releases
  • Customer-centric development
  • Unparalleled features to optimize workflow

See into concrete deeply and clearly, detect objects effortlessly and reliably, collaborate anywhere at any time. This intelligent, feature-rich app gets better and better over time, and it is available with subscription, so you always have access to continuous innovation and over-the-air updates. 10,000+ users have trusted us. See the software evolution so far from the very first app Version 1, to the latest version.

  • Free updates & releases
  • Customer-centric development
  • Unparalleled features to optimize workflow

See into concrete deeply and clearly, detect objects effortlessly and reliably, collaborate anywhere at any time. This intelligent, feature-rich app gets better and better over time, and it is available with subscription, so you always have access to continuous innovation and over-the-air updates. 10,000+ users have trusted us. See the software evolution so far from the very first app Version 1, to the latest version.

Proceq GPR App
App Version 1

Top capabilities introduced with App Version 1:

  • The world’s first wireless and handheld SFCW GPR
  • Non-Migrated view allowing to see hyperbolas
  • Migrated view allowing to see the objects
  • Improved linearization algorithm increasing depth accuracy
  • The world’s first cloud storage for GPR measurements
  • Cloud data sharing for significantly improved collaboration
  • Cloud support allowing quality control and updates information
  • SEG-Y files export for data post-processing
  • Direct enter of gain to refine the views
  • Direct enter of dielectric constant to refine the views

… and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top capabilities introduced with App Version 1:

  • The world’s first wireless and handheld SFCW GPR
  • Non-Migrated view allowing to see hyperbolas
  • Migrated view allowing to see the objects
  • Improved linearization algorithm increasing depth accuracy
  • The world’s first cloud storage for GPR measurements
  • Cloud data sharing for significantly improved collaboration
  • Cloud support allowing quality control and updates information
  • SEG-Y files export for data post-processing
  • Direct enter of gain to refine the views
  • Direct enter of dielectric constant to refine the views

… and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Proceq GPR App
App Version 2

Top new capabilities introduced with the free upgrade:

  • Unlocked live-wire (EM) detection kit
  • Show entire long scans at once with horizontal scaling at will
  • A-scan envelope curve
  • Boosted B-scan image quality
  • Delete measured lines in reverse order during an Area Scan
  • German, Japanese, Chinese and Korean language support
  • Estimate the dielectric constant using hyperbola fit
  • Share multiple measurements with a single URL
  • Orient yourself in 3D view with axes (and double-tap planes)
  • Adjust the gain on a depth range using Focus Tool and Auto Gain

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top new capabilities introduced with the free upgrade:

  • Unlocked live-wire (EM) detection kit
  • Show entire long scans at once with horizontal scaling at will
  • A-scan envelope curve
  • Boosted B-scan image quality
  • Delete measured lines in reverse order during an Area Scan
  • German, Japanese, Chinese and Korean language support
  • Estimate the dielectric constant using hyperbola fit
  • Share multiple measurements with a single URL
  • Orient yourself in 3D view with axes (and double-tap planes)
  • Adjust the gain on a depth range using Focus Tool and Auto Gain

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Proceq GPR App
App Version 3

Top new capabilities introduced with the free upgrade:

  • Augmented Reality: superimpose the Time-Slice onto the scanned area
  • Augmented Reality: superimpose the 3D view into the volume below the scan
  • New high-resolution Live Wire overlay
  • Export up to 30 files at a time in SEGY format or shared via URL
  • New tags and the geolocation in Logbook
  • High-resolution snapshots for data clarity
  • New color mapping of the non-migrated view
  • Real-time collaboration with LTE-enabled iPad
  • Depth-slice slider for 3D view
  • Smooth zooming and scaling of axes

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top new capabilities introduced with the free upgrade:

  • Augmented Reality: superimpose the Time-Slice onto the scanned area
  • Augmented Reality: superimpose the 3D view into the volume below the scan
  • New high-resolution Live Wire overlay
  • Export up to 30 files at a time in SEGY format or shared via URL
  • New tags and the geolocation in Logbook
  • High-resolution snapshots for data clarity
  • New color mapping of the non-migrated view
  • Real-time collaboration with LTE-enabled iPad
  • Depth-slice slider for 3D view
  • Smooth zooming and scaling of axes

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Proceq GPR App
App Version 4

Top new capabilities introduced with the free upgrade:

  • Enrich your data with hand-scribbled annotations
  • Work in WiFi restricted areas using a cable connection (GP8800)
  • User customizable buttons on the sensors for a personalized workflow
  • Dynamic millimeter accuracy roll-back for physical marking on the concrete
  • Segment your 3D View within color with True ColorDepth
  • Expand your Area Scan with the Flexible Grid and up to 16m2
  • Unlocked measuring in tight and congested space (GP8800)
  • Export logbook, snapshots and metadata in HTML for your reporting
  • Added new smart background removal filters

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top new capabilities introduced with the free upgrade:

  • Enrich your data with hand-scribbled annotations
  • Work in WiFi restricted areas using a cable connection (GP8800)
  • User customizable buttons on the sensors for a personalized workflow
  • Dynamic millimeter accuracy roll-back for physical marking on the concrete
  • Segment your 3D View within color with True ColorDepth
  • Expand your Area Scan with the Flexible Grid and up to 16m2
  • Unlocked measuring in tight and congested space (GP8800)
  • Export logbook, snapshots and metadata in HTML for your reporting
  • Added new smart background removal filters

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Proceq GPR App
App Version 5

Top new capabilities introduced with the free upgrade:

  • Interated with WORKSPACE, for collaboration and post-analysis of all your GPR data
  • Compatibility with the GP8100 sensor to unleash unmet productivity gains
  • Superline scan visualization instantly displays the detected objects in never-seen clarity
  • Split view combining the superline scan view and visualization of any of the 6 classical line scans
  • Flexible grid for area scan up to 100m2, reaching a gigantic tomography capacity
  • Stop/resume area scan, giving you flexibility and freedom in the workflow
  • Search/filter function, easing the arrangement, classification and searching of measurement files
  • Frequency domain replaces time domain for faster data transfer between sensor and software

Top new capabilities introduced with the free upgrade:

  • Interated with WORKSPACE, for collaboration and post-analysis of all your GPR data
  • Compatibility with the GP8100 sensor to unleash unmet productivity gains
  • Superline scan visualization instantly displays the detected objects in never-seen clarity
  • Split view combining the superline scan view and visualization of any of the 6 classical line scans
  • Flexible grid for area scan up to 100m2, reaching a gigantic tomography capacity
  • Stop/resume area scan, giving you flexibility and freedom in the workflow
  • Search/filter function, easing the arrangement, classification and searching of measurement files
  • Frequency domain replaces time domain for faster data transfer between sensor and software

SWISS MADE_horizontal lockup.svg
Software for Proceq GPR App
Proceq GPR App
Tech Specs
Measurement modes
Superline Scan¹ (1000m / 3281 ft)

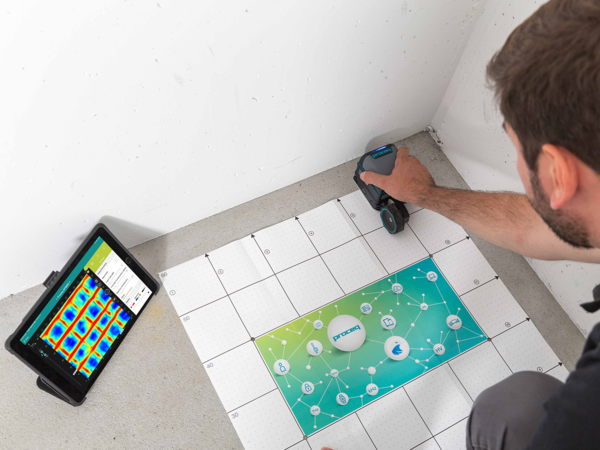

Area Scan (with Flexible Grid up to 100m2 / 1076 ft2)

Review modes
Superline scan¹
A-scan (incl. envelope)
Migrated view
Non-migrated view
Split view¹
Time-Slice view² Basic
3D view
AR

Advanced visualization
Time-Slice view Pro
3D view
Augmented Reality (AR)

Reporting
Workspace integration
Automatic Logbook
SEG-Y export
Instant report generation
Share via URL

Export formats
JPG
PNG
CSV
SEGY
HTML

Display Unit Specs*
Latest Apple® iPad recommended
(iPad with iOS 13.6 and higher)
Screen size: From 7.9" to 12.9"
Resolution: Up to 2732-by-2048
Memory: Up to 2TB
Weight: Down to 301 g / 10.6 oz
Camera: Up to 12MP Wide and 10MP Ultra Wide
Optional: USB-C, 5G, Face ID

Display Unit Sensors*
LiDAR Scanner (optional)
Three-axis gyro
Accelerometer
Ambient light sensor
Barometer
Built-in GPS/GNSS

Proceq GPR App | Info & compatibility

1. GP8100 only; 2. GP8000 & GP8100 only
* Depending on iPad model

GP8800 Tech Specs
Instrument
Tech Specs
Radar technology
Stepped-frequency continuous-wave (SFCW) GPR

Modulated frequency range
400 – 6000 MHz

Penetration depth
65 cm / 25.6 in

Battery
Flight-safe, removable pack, 4x AA (NiMH)

Dimensions
8.9 x 8.9 x 7.6 cm
3.5 x 3.5 x 3 in

Weight
487 g / 17.2 oz (excl. battery pack)

Ground clearance
0 cm

Antennas
1

Antenna distance to edge
4.5 cm / 1.77 in

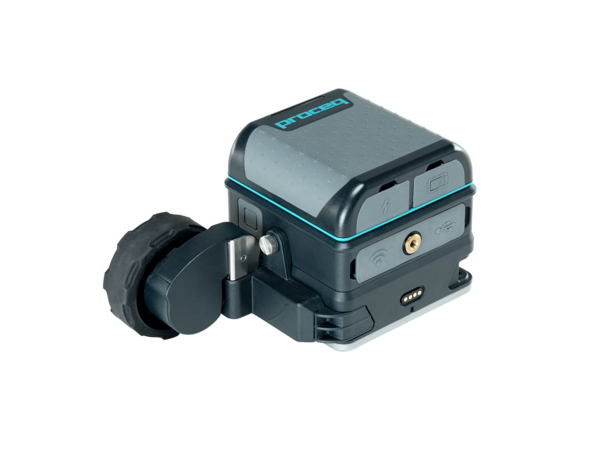

Special features

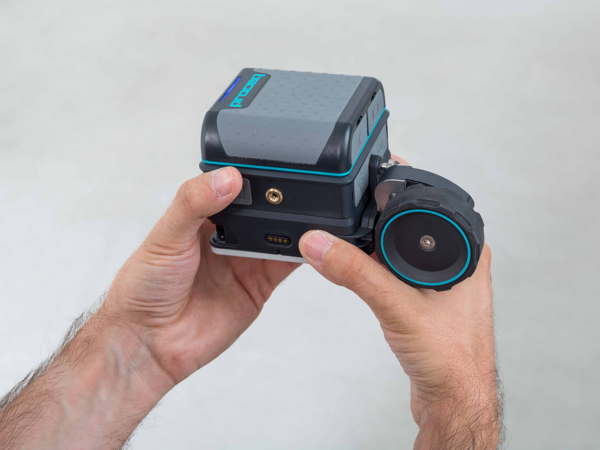

Wireless wheel, reconfigurable at any time without tools.
Cross-polarization (trailing and side-car configurations)
USB-C tethering to battery pack/power bank

Connections
WiFi (802.11n) and USBC to display unit

Autonomy
2.5 h (up to 8 hours with off-the-shelf 10'000 mAh power bank, not included)
Other customers also purchased:
Our Accessories
79330235
UTH100 Universal tablet holder for Proceq GPR and Pundit PD
UTH100 Universal tablet holder for Proceq GPR and Pundit PD

Universal tablet holder for direct mounting on Proceq GPR 8000/8100 and Pundit PD8050

Fully adjustable to accommodate any size of iPad up to 12.9”

39380010
TRG100 GP8x00 Telescopic rod with tablet holder
TRG100 GP8x00 Telescopic rod with tablet holder

Telescopic rod kit for Proceq GPR instruments including the universal tablet holder UTH100

Compatible with GP8000, GP8100 and GP8800

For comfortable scanning on floors, walls and ceilings

Fully adjustable to accommodate any size of iPad up to 12.9”

Min / max length (cm): 52 /183

79330345
UHA100 - Universal tablet holder with chest strap
UHA100 - Universal tablet holder with chest strap

Chest harness kit for hands free operation of all iPad app based instruments:
GP8000, GP8100, GP8800, PD8050, PM8000, PI8000

Can also be used as an iPad stand

Fully adjustable to accommodate any size of iPad up to 12.9”

Standards & Guidelines

Standards

Asia-Pacific
  • Arrow, click names to download Standards & Guidelines ACI 228.2R.98
  • Arrow, click names to download Standards & Guidelines ASTM D4748-10
  • Arrow, click names to download Standards & Guidelines ASTM D6087-08
  • Arrow, click names to download Standards & Guidelines ASTM D6432-11
  • Arrow, click names to download Standards & Guidelines EN 302066 - ETSI

Guidelines

  • Arrow NCHRP Synesis 255
  • Arrow SHRP H-672
  • Arrow SHRP S-300
  • Arrow SHRP S-325
FAQ

What is the accuracy in object detection with GPR?

The accuracy in object detection with Proceq GPRs is as follows:

See More

What does GPR stand for?

GPR is the acronym for Ground Penetrating Radar, also known as Georadar, Ground Penetration Radar, or Ground Probing Radar.


What is GPR?

GPR is a compact device that scans the subsurface in a non-destructive way. It can penetrate the surface from a few cm down to tens or hundreds of meters, based on soil conditions and antenna characteristics.


How does GPR work?

GPR emits electromagnetic (EM) waves to the subsurface and calculates the time these waves need to travel through the various subsurface material and get back to the GPR receiver. This two-way travel-time, along with a few...

See More

What applications does GPR cover?

GPR is a very useful tool in a variety of applications. Most popular uses of GPR are the non-destructive testing and mapping of objects inside the concrete, such as rebars, pipes, ducts, and cables. Other applications are...

See More

Will my GPR work as standalone unit or can it also complement other methods?

Both. GPR can be used as a standalone unit if you work on specific applications and you are happy with a limited set of feedback and information. However, it is not a tool for every job you may have onsite. In concrete...

See More

What is dielectric value?

Dielectric, also known as relative permittivity, is a unitless value that determines how fast EM waves travel in a specific medium. Its values range from 1 to 81, with lower values being better for GPR. Air, which is the...

See More

Can GPR find all targets?

GPR can detect metallic and non-metallic targets below the surface. However, certain limitations exist, like the depth to target limitation. The rule of thumb is that GPR can detect almost any target if it is at least one...

See More

Can GPR penetrate metal?

No. Metal is a perfect reflector of GPR with an infinite dielectric, thus all EM energy is being reflected to the radar. Differently to GPR, Ultrasonic tomography can penetrate metal with only a partial reflection allowing...

See More

What affects my GPR data quality?

Anything that emits at the same frequency range as GPR, from around 10MHz up to 6GHz, can be a potential source of noise for your data. Cell phone towers are a main source of interference. Collecting data close to cell...

See More

What does not affect my GPR data quality?

Bluetooth, GPS, Wi-Fi are not a source of interference and therefore you can use them with no problems when collecting GPR data.


How deep can GPR penetrate the concrete?

This depends on how young the concrete is; young concrete is not well cured, has more water and thus the radar does not penetrate that deep. Older concrete is usually drier and thus better for GPR.


Will my GP8x00 GPR collect any data if I do not move?

No. Data collection on GPR systems (GPx and GSx) is triggered by wheel movement. If you do not move the radar, then no data collection is happening. The wheel is acting also as an odometer, giving local coordinates on the...

See More

Do I need to calibrate my GP8x00 GPR?

No. GPR self-calibrates each time you turn it on. There is no need to send your unit back to a repair/calibration center.


Does Proceq GP8x00 GPR work on all surfaces?

Proceq GP8800 and GP8100 GPRs have wheels and a certain clearance from the surface. If the wheels can move over the surface the GPR can collect data. Moving over conductive materials, e.g., aluminum, copper etc. can limit...

See More

What is the difference between 2D and 3D data?

2D Data are collected over single lines and give you a B-scan or radargram of the specific profile the radar has covered. The B-scan is a graphical representation of radar data (sequence of A-scans or traces) on an x-axis...

See More

Does GPR calculate the diameter of a rebar?

GPR is not the ideal tool to calculate the rebar size. There is a technique where you can get approximate values for the rebar size by measuring the depth to the rebar from both in line and cross line data and the...

See More

I have a rebar locator, why should I buy a GPR?

Rebar locators (Profometer: https://bit.ly/39B0QhJ) are the most economical and accurate solutions to map the first layer of rebars in concrete. They accurately measure the rebar cover independently of concrete properties...

See More

How to detect voids and delamination using GPR?

Air inside the concrete results in a partial reflection of the GPR signal, which allows you to detect larger voids. Thin delamination and small voids only give a small reflection and can typically be visualized using GPR....

See More

Is GPR safe for operators?

Yes. GPR, unlike other testing methods such as radiography, is totally safe for the operator. Our antennas are shielded and emit most of the EM energy down to the subsurface. Total emissions from GPR are a tiny fragment of...

See More

Is GPR environmental-friendly?

Yes. As a non-intrusive technique, GPR does not alter or burden the environment and can be used in sensitive areas or environmental fragile areas without a problem.


Do I need a license to carry a survey?

That depends on the area you want to work and the local regulations. However, GPR surveys do not typically require a safety clearance because the method itself is not dangerous. If however, you work at a dangerous or...

See More

Do standards exist for GPR surveys?

Yes. ASTM has published the standard ASTMD6432–19, as a guide for using GPR for subsurface investigation. You can get more info here https://www.astm.org/Standards/D6432.htm There are several other standards related to...

See More

Is Screening Eagle GPR certified?

Yes. Our equipment meets CE, IC, FCC, ETSI-EN RSS-220 and RoHS regulations.


Can I transport or ship the Proceq GP8000 or GP8800 with safety?

Yes, unlike the competitors who use batteries characterized as dangerous goods for aviation, Screening Eagle’s GPR use standard rechargeable NiMH C-batteries which can fly with you, ship with no restrictions, and most...

See More

What is the most used data format for GP8000 and GP8800 GPR?

Typically, GPR exports data in the SEG-Y format. This can be easily converted to other formats like .xls, .dxf or .kml if needed for further visualization of data.


What is Stepped Frequency Continuous Wave?

Unlike Pulsed-GPR broadcasting a signal centered around one frequency, resulting in a trade-off of resolution and depth for inspecting, stepped frequency continuous wave (SFCW) has the advantage to broadcast an ultra...

See More

What is SEGY format?

The SEGY (sometimes SEG Y) file format is a commonly used data standard for the exchange of geophysical data. It is mainly used for Seismic data, but also for saving GPR raw data. Our GPR SEGY files can also be used for...

See More

What is the Cross-polarization of data?

The most typical data collection is when the Tx-Rx pair (Transmitter and Receiver of the GPR antenna) moves in parallel with the line that you are collecting data. When the antenna is in its standard position, metallic...

See More
