Automatic film applicators

ZAA2600.HA

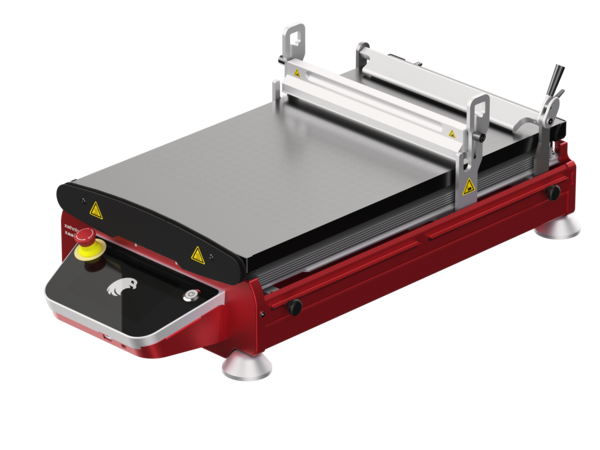

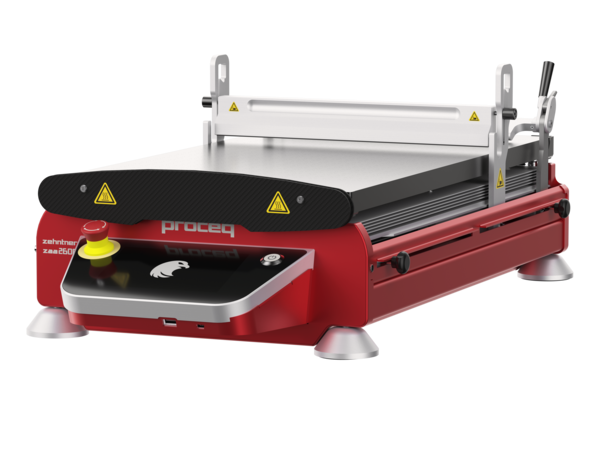

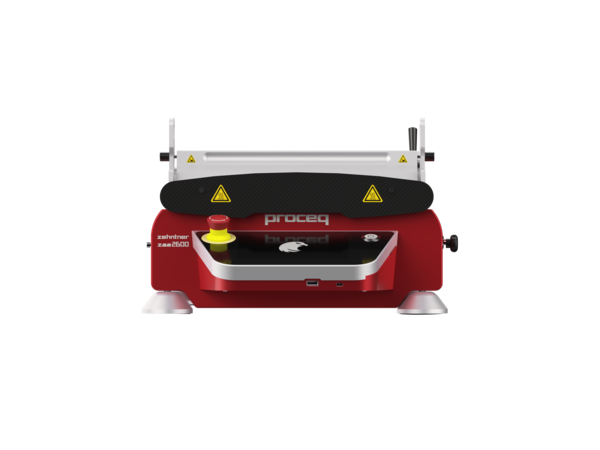

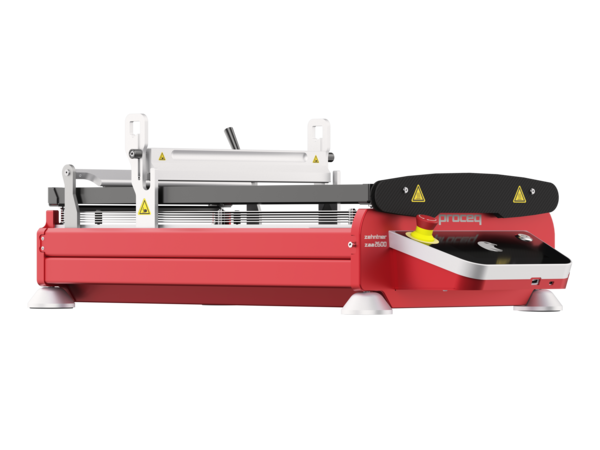

Automatic Film Applicator for use with Heatable Plates

  • Multi-language menu guidance
  • Reproducible, operator-independent results
  • Compact and modular design

Applications:

For use in the paint, varnish, adhesive and chemical industries / Quality assessment / Can be equipped for scrub tests / Can be equipped for crocking tests / Can be equipped for scratch resistance tests / Comes equipped for use with heatable plates

Contact us now
Automatic film applicator for heatable plates with a capacitive touchscreen
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_User%20Experience.svg
User experience
Multi-language menu guidance on the touch screen with storage of various application profile settings such as application length and drawing speed.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Reliability.svg
Reliability
Reproducible, operator-independent results allow for storage of various application profile settings such as application length and drawing speed.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Versatility
Thanks to its modular construction and compact design, it can be equipped with different kits for applications like scrub resistance, washability, crocking, and scratch resistance tests.
SWISS MADE_horizontal lockup.svg
ZAA2600.HA Tech Specs
Instrument
Tech Specs
Display
Touchscreen 5.7" colour TFT (LCD), LED backlight, VGA resolution
Application length
Application length: up to ≈ 400 mm (≈ 15.75")
Application width
Application width: up to 300 mm (11.81")
Weight
2600.HA: ≈ 24 kg (≈ 52.9 lbs)
glass plate only: 6.4 kg (14.1 lbs)
Battery
Power supply: 100 V - 240 V, 50 Hz - 60 Hz
Operating Temperature
Plates: heatable up to 150°C (302°F)
Temperature range
Ambient conditions for operation:
5°C to +45°C (41 °F to 113 °F)
Relative humidity
20% to 80%, no condensation
Drawing speed
1 - 500 mm/s (0.04 - 19.69“/s)
Resolution
Resolution: 1 mm/s (0.04”/s)
PDF Version
Other customers also purchased:
Standards & Guidelines

Standards

  • Arrow, click names to download Standards & Guidelines ASTM D1640 (Depending on accessory)
  • Arrow, click names to download Standards & Guidelines ASTM D4748-10
  • Arrow, click names to download Standards & Guidelines ASTM D6279
  • Arrow, click names to download Standards & Guidelines ASTM D823 (Depending on accessory)
