Manual Film Applicators

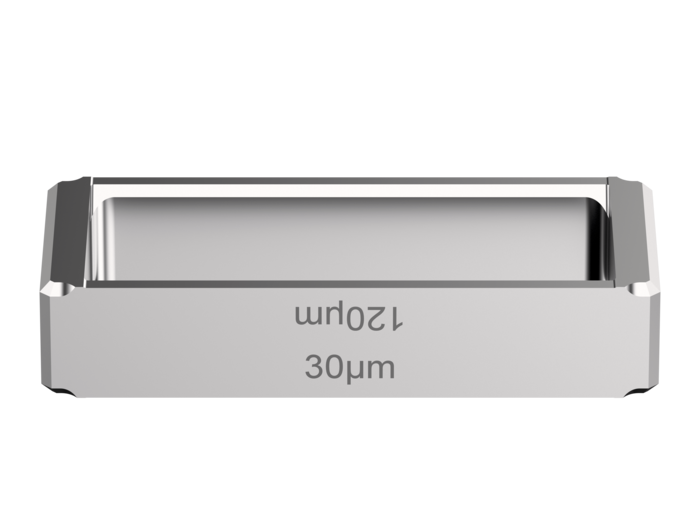

ZAF 2010

4-sided Applicator Frame

  • Versatile combinations
  • Reliable results
  • Small and easy to use

Applications:

Applicator for use in the paint, varnish, adhesive and chemical industries / Quality assessment

The manual applicator frame with uniform films of coating materials, adhesives, and similar products on flat substrates
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Versatility
The applicator frame can be used manually or in combination with automatic film applicators. Various width and thickness combinations (4 per version) are available.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Reliability.svg
Reliability
A significant advantage that the coating material being applied is retained within the guide walls, resulting in clean and precise applications.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Ease%20of%20Use.svg
Ease of Use
The film thickness can be easily chosen by placing the applicator with the desired thickness.

SWISS MADE_horizontal lockup.svg
ZAF 2010 Tech Specs
Instrument
Tech Specs
Measurement Modes
4 gap heights depending on version:
30 / 60 / 90 / 120 µm (1.18 / 2.36 / 3.54 / 4.72 mil)
50 / 100 / 150 / 200 µm (1.97 / 3.94 / 5.91 / 7.87 mil)
or 4 on request from 5 - 2,000 µm (0.20 - 78.74 mil)

Measuring Geometries
Film Width depending on version:
60 mm (2.36")
80 mm (3.15")
or on request from 20 mm to 200 mm (0.79" - 7.87")
Other customers also purchased:
Our Accessories
43010923
Proceq Precision-Vacuumplate with a series of holes of 1 mm (0.04”) drilling
Proceq Precision-Vacuumplate with a series of holes of 1 mm (0.04”) drilling

Proceq Precision-Vacuumplate with a series of holes of 1 mm (0.04”) drilling (43010923) Accessories

43010966
Proceq Precision-Vacuumplate with a series of holes of 0.5 mm (0.02”) drilling
Proceq Precision-Vacuumplate with a series of holes of 0.5 mm (0.02”) drilling

Proceq Precision-Vacuumplate with a series of holes of 0.5 mm (0.02”) drilling (43010966) Accessories

43010906
Proceq Vacuum Pump 230 V with hose
Proceq Vacuum Pump 230 V with hose

Proceq Vacuum Pump 230 V with hose (43010906) Accessories

43010924
Proceq Vacuum Pump 115 V with hose
Proceq Vacuum Pump 115 V with hose

Proceq Vacuum Pump 115 V with hose (43010924) Accessories

Standards & Guidelines

Standards

  • Arrow, click names to download Standards & Guidelines ASTM D1640 (Depending on accessory)
  • Arrow, click names to download Standards & Guidelines ASTM D4748-10
  • Arrow, click names to download Standards & Guidelines ASTM D823
