Ultrasonic UPE | UPV

Pundit 200

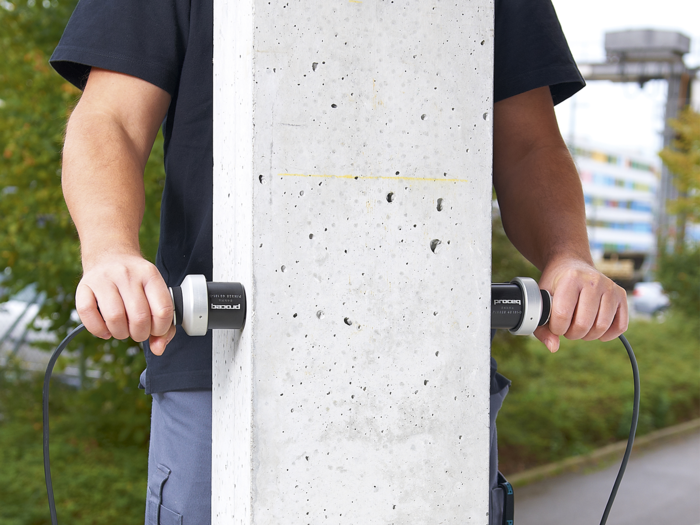

Concrete properties analysis using ultrasound pulse velocity
  • Complete set of measurement modes
  • Area scanning for uniformity testing
  • The same instrument can be used with pulse-echo transducers

Applications:

Correlation of compressive strength of concrete and rocks / Correlation to modulus of elasticity of rocks / Mapping homogeneity of concrete / Concrete strength estimation using the SONREB method / Quality assessment

Best-in-class Ultrasonic testing instrument providing superior features for on-site testing
/Images/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Diverse.svg
Diverse

In addition to the standard pulse velocity measurement, various measurement modes including surface velocity measurement, Line Scan, Area Scan, Data Logging, compressive strength correlations, SONREB and E-modulus measurement.

/Images/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Automation.svg
Automation

The area scan grid can be freely defined by the user and the colour coded results can display either pulse velocity or depth variations on the structure to quickly identify areas of concern.

/Images/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Versatility

Provides the unique capability to use the same display device for both classical pulse velocity testing and pulse echo testing.


Swiss Made
Pundit 200 Tech Specs
Sensor
Tech Specs
Bandwidth
20 to 500 kHz

Technology
Ultrasonic pulse velocity

Measuring Resolution
0.1 us

Pulse Voltage
±100 to ±450 V (UPV)

Receiver Gain
1 to 10’000x (0 to 80 dB)

Nominal Transducer Frequency
24 – 500 kHz

Pulse Shape
Square Wave

Pulse Delay

Number of Channels
1

PC Software
PL-Link for analysis and export data to third party applications

Display
7” color rugged touchscreen unit (800 x 480 pixels) with a dual-core processor

Memory
>Internal 8 GB flash memory

Connections
USB host/device and Ethernet

Measurement Modes
Pulse velocity
Surface velocity
Data logging
E-modulus
Compressive strength correlation
Crack depth
Line Scan
Area Scan

Measuring Range
Up to 15 m depending on concrete quality

Special Features
Zoom and scroll for precise A-Scan inspection
On board storage and review of waveforms
Settings directly accessible on measuring screen
Dual cursor for manual A-Scan evaluation
Separate cursor to measure signal amplitude
Automatic and manual triggering and user-adjustable trigger threshold
A-Scan update rate up to 25 Hz

Transducers
Avaiable Proceq transducers: 54 kHz, 150 kHz, 250 kHz, 54 kHz Exponential, 500 kHz and 250 kHz Shear Wave
Connect third party transducers up to 24 kHz, 54 kHz, 150 kHz, 250 kHz, 54 kHz Exponential, 500 kHz and 40 kHz shear wave dry point contact

Innovation Award
Other customers also purchased:
Accessories
32730130
Pundit Dry-Point Shear Wave Transducer Upgrade Kit to Pundit 250 Array
Pundit Dry-Point Shear Wave Transducer Upgrade Kit to Pundit 250 Array
Pundit Dry-Point Shear Wave Transducer Upgrade Kit to Pundit 250 Array
Upgrade Kit to Pundit 250 Array (327 30 130)
32540049
2 S-Wave Transducers, 250 kHz, incl. couplant
2 S-Wave Transducers, 250 kHz, incl. couplant
2 S-Wave Transducers, 250 kHz, incl. couplant
2 S-Wave Transducers, 250 kHz, incl. couplant (325 40 049)
32540176
2 Exponential transducer 54 kHz, including calibration rod
2 Exponential transducer 54 kHz, including calibration rod
2 Exponential transducer 54 kHz, including calibration rod
2 Exponential transducer 54 kHz, including calibration rod (325 40 176)
32701033
Battery complete
Battery complete
Battery complete
Battery complete (327 01 033)
32701053
Quick Charger (external)
Quick Charger (external)
Quick Charger (external)
Quick Charger (external) (327 01 053)
FAQ
Any questions?
Get in touch with us...
Standards & Guidelines

Standards

Russia
  • Arrow, click names to download Standards & Guidelines ГОСТ 17624
  • Arrow, click names to download Standards & Guidelines ASTM C 597-02
  • Arrow, click names to download Standards & Guidelines CECS 21
  • Arrow, click names to download Standards & Guidelines EN 12504-4
  • Arrow, click names to download Standards & Guidelines IS 13311
  • Arrow, click names to download Standards & Guidelines ISO 1920-7:2004
