Marking Retroreflection

ZDR 6020 RL

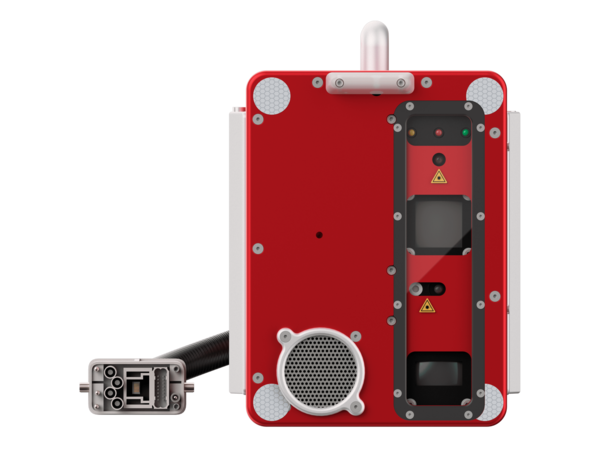

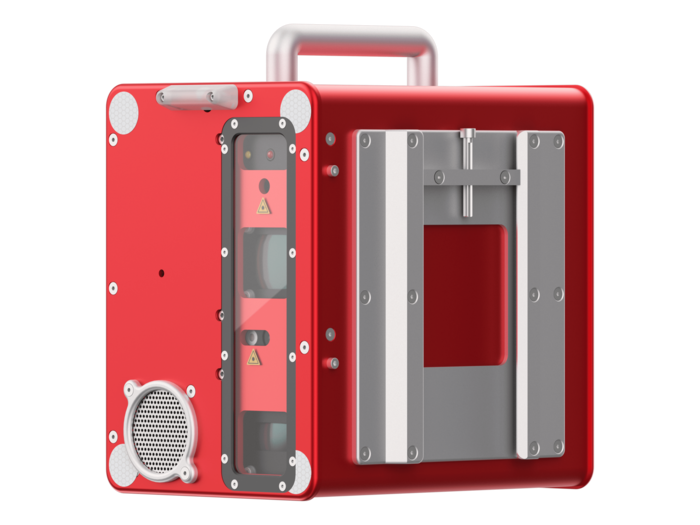

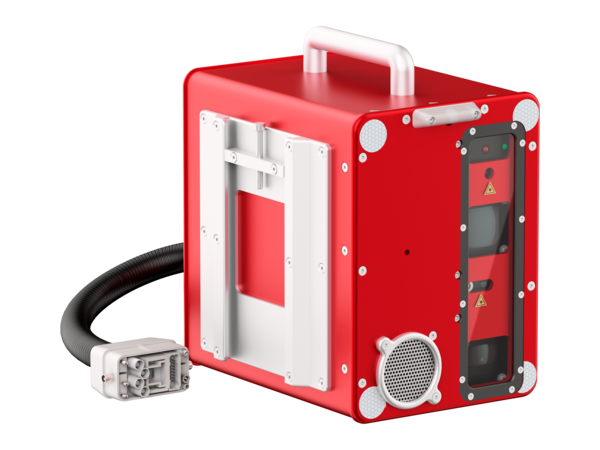

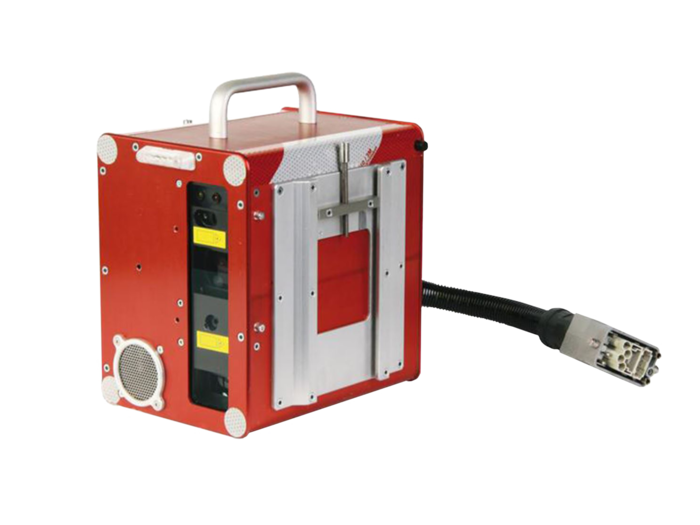

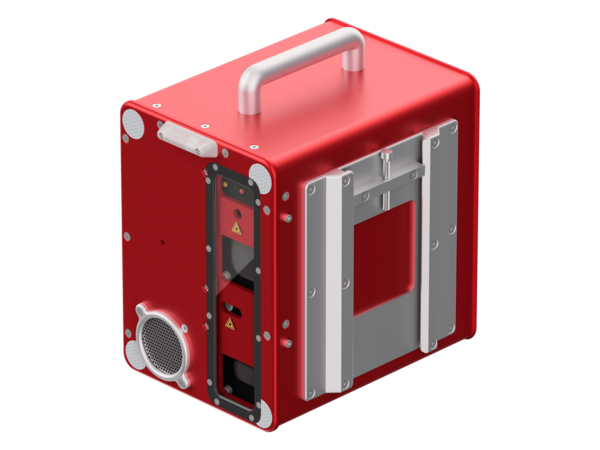

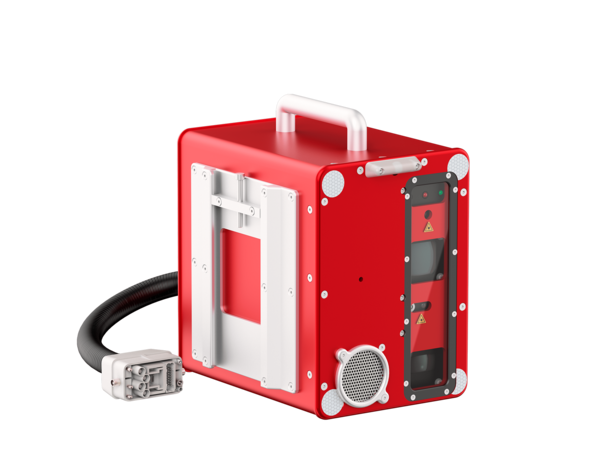

Vehicle-mounted retroreflectometer for safe and efficient continuous measurements

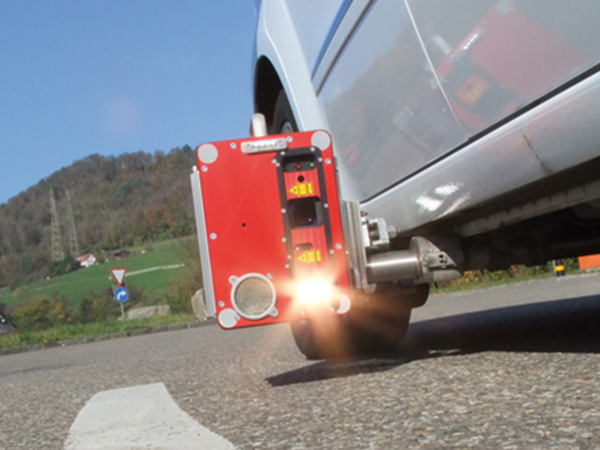

  • Vehicle-mounted with accurate 300 measurements per second
  • Handheld precision at up to 150 km/h (93 mph)
  • Industrial grade touchscreen tablet

Applications:

Continuous measurements of the night visibility (RL) / Use on all types of road and airport markings / Field and laboratory use / Quality assessment

The best value in night visibility measurement
/Images/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Reliability.svg
Reliability
Vehicle-mounted with 300 measurements per second guaranteeing accurate and continuous coverage for all types of colors and road markings
/Images/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Accuracy.svg
Accuracy
Handheld precision at up to 150 km/h (93 mph) without obstructing traffic and for all light conditions, even in bright sunlight
/Images/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_User%20Experience.svg
User Experience
Measurements can be evaluated with the free mapping and tools software on an industrial-grade touchscreen tablet with a multilingual user interface

Swiss Made
ZDR 6020 RL Tech Specs
Sensor
Tech Specs
Technology
Integrated camera for road surveillance with 10m (32.81 ft) picture sequence

Measuring Resolution
Data recording with 300 measurements per second

Display
11.6 in. touchscreen tablet with installed ZDR 6020 RetroGrabber software and microphone

Measurements
Measuring area (WxL) - ≥1000 mm x 880 mm (≥39.4“ x 34.65“)
Measuring distance in front of the measuring head - 6 m (19.7 ft)
Measuring speed - max. 150 km/h (93.21 mph)

Measuring Range
RL: 0 - 4‘000 mcd•m-2•lx-1
Profiled Markings: ≈20 mm (0.79")

Measuring Accuracy
Handheld precision at up to 150 km/h (93 mph)

Observation Angle
EN 1436: 2.29°
ASTM E 1710: 1.05°

Illumination Angle
EN 1436: 1.24°
ASTM E 1710: 88.76°

Reporting software
Includes mapping and data analysis software MappingTools

Weight
Measuring Head: 10.5 kg (23.1 lbs)

Operating Temperature
0°C to 55°C (32°F to 131°F)

Special Features
Languages available: German, English, Spanish, French Italian, Russian, Chinese, Korean

Innovation Award
Other customers also purchased:
FAQ

What is retroreflection (night visibility)
Retroreflection, also called night visibility, is a specific type of light reflection when the light rays goes on a surface and comes back to the source of light. This principle is a pillar in road safety. Indeed, the vehicles lamps during the night enable to see the road markings, road signs and conspicuity tapes. A retroreflectometer is used to measure the retroreflection performance of the surface. The retroreflection (often written “R”) is measured in mcd. m-2. lx-1.
