Zehntner Marking Retroreflection

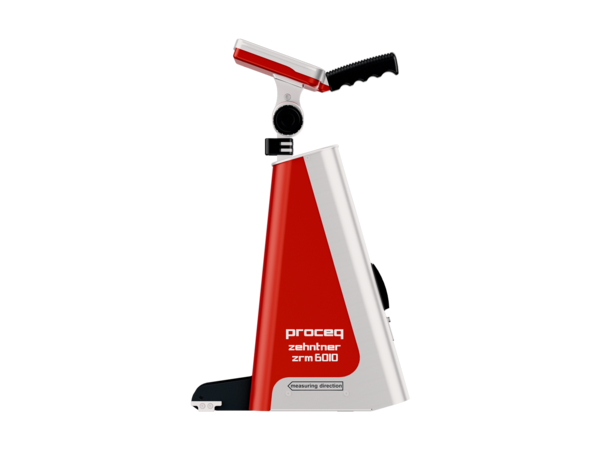

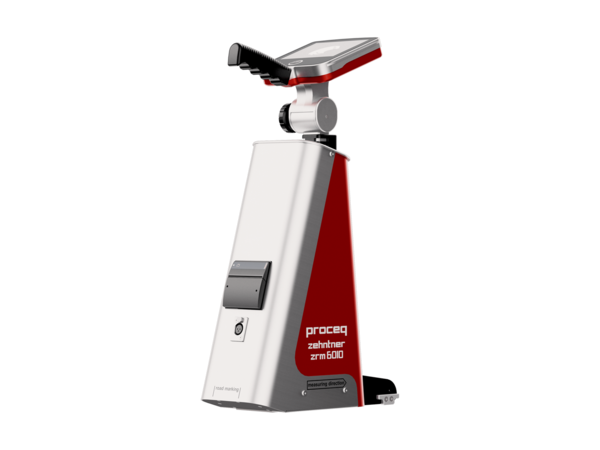

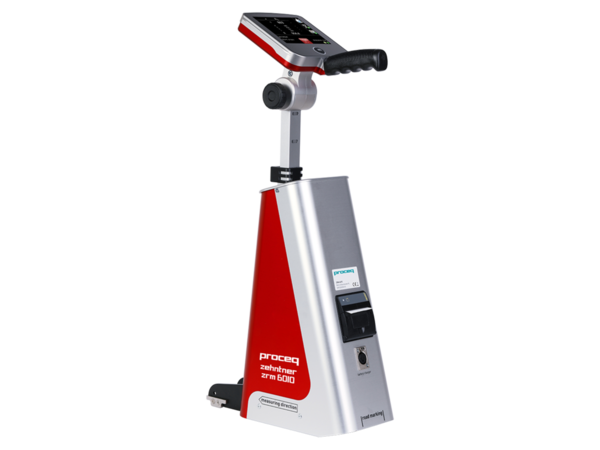

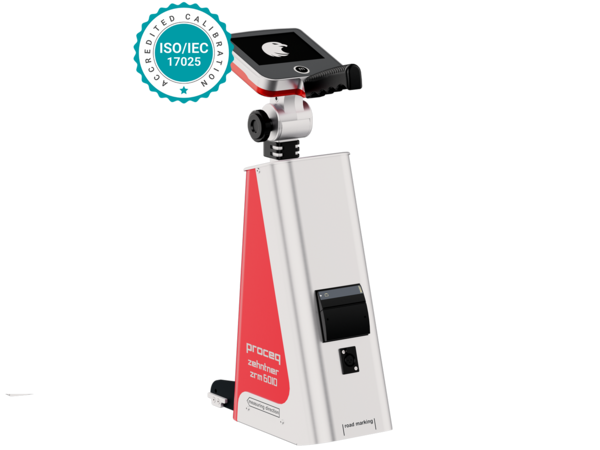

ZRM 6010 RL

Night visibility. Continuous wetting and rain conditions.
  • Superior ergonomics, class-defining portability, and intuitive software
  • Intelligent electronics monitor the environment and adjust to stray light
  • Ultrafast and precise geolocation and high resolution images

Applications:

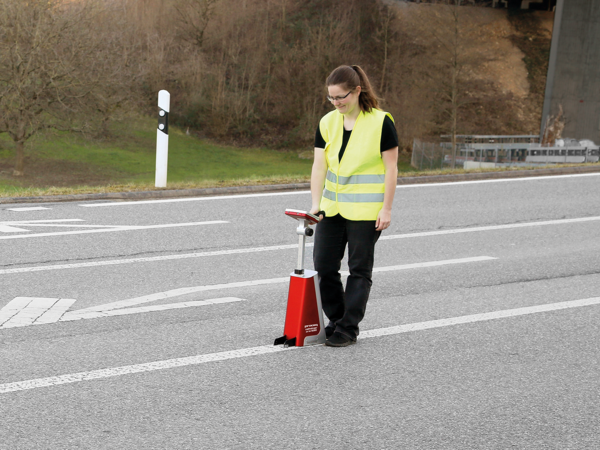

Determination of night visibility (RL) of road and airport markings / Measurement of RL under standard conditions of continuous wetting and conditions of rain using a rain simulator / Use on all types of road and airport markings / Field and laboratory use / Quality assessment

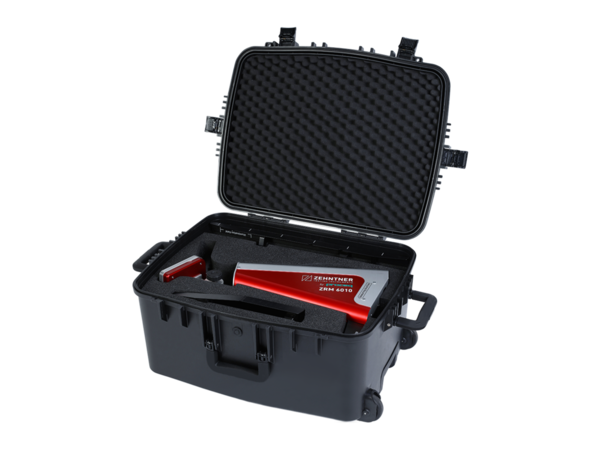

A portable handheld top class retroreflectometer for all types of road and airport markings in one compact instrument
/Media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Versatility
Gather data for night visibility effectively under any weather conditions, at day or night, on any road surface
/Media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Accuracy.svg
Accuracy

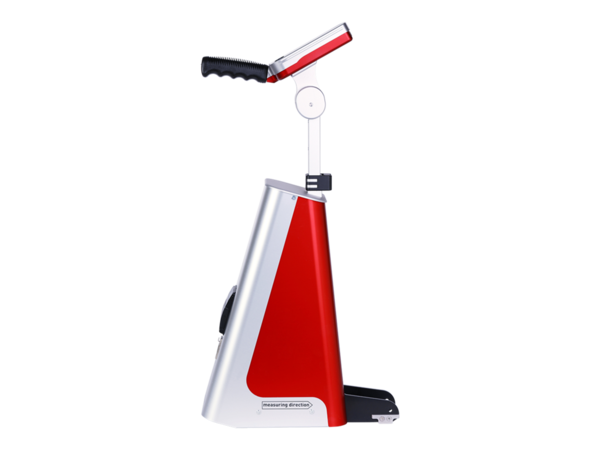

Telescopic handle for easy field and laboratory operation —the result is a new benchmark of measurement accuracy and robustness under any conditions in the field
/Media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Productivity-10.svg
Productivity
Enrich your measurements with precise geolocation and high resolution images. The user friendly analysis software makes comprehensive reports possible quickly and with ease

Swiss Made
ZRM 6010 RL Tech Specs
Sensor
Tech Specs
Display
Touchscreen 5.7" color TFT (LCD), LED backlight, VGA resolution

Memory
1 GB internal flash memory

Measurement Modes
RL dry (night visibility)
RL wet (night visibility)
RL continuous wetting (night visibility)
°C/°F (ambient temperature)
rH % (relative humidity)

Measuring Area
(WxL): 52mm x 489mm (2.05" x 19.25")

Measuring Range
RL: 0 - 4’000 mcd•m-2•lx-1

Measuring Accuracy
Repeatability ± 2 %

Observation Angle
EN 1436: 2.29°
ASTM E1710: 1.05°

Illumination Angle
EN 1436: 1.24°
ASTM E1710: 88.76°

Weight
6.4kg (14.11 lbs)

Operating Temperature
0°C to +50°C (32°F to 122°F), non condensing

Innovation Award
Other customers also purchased:

Applications

  • Determination of night visibility (RL) of road and airport markings
  • Measurement of RL under standard conditions of continuous wetting and conditions of rain using a rain simulator
  • Use on all types of road and airport markings
  • Field and laboratory use
  • Quality assessment

The ZRM 6010 makes the “continuous wetting” method possible through an “external beam” retroreflectometer. This means that the projected RL light source will hit the ground at a point that is ahead of the ZRM 6010 (where the simulated rainfall is located).

Applications
Optional integrated high-resolution camera

Optional integrated high-resolution camera

The high-resolution camera takes top quality pictures of the measured road or airport markings – the built-in zoom allows for detailed inspection of the marking, so the embedding of the glass beads can be checked easily without the need to crouch down on the road with a magnifying glass.

In zoom mode, a true scale is displayed so that the size of the embedded glass beads can be determined.

The picture is stored together with the measuring value, so it can be used as a direct reference.

Of course the picture will also be downloaded to the free versatile mapping and data analysis software MappingTools.

FAQ

What is retroreflection (night visibility)
Retroreflection, also called night visibility, is a specific type of light reflection when the light rays goes on a surface and comes back to the source of light. This principle is a pillar in road safety. Indeed, the vehicles lamps during the night enable to see the road markings, road signs and conspicuity tapes. A retroreflectometer is used to measure the retroreflection performance of the surface. The retroreflection (often written “R”) is measured in mcd. m-2. lx-1.
