Zehntner Marking Retroreflection

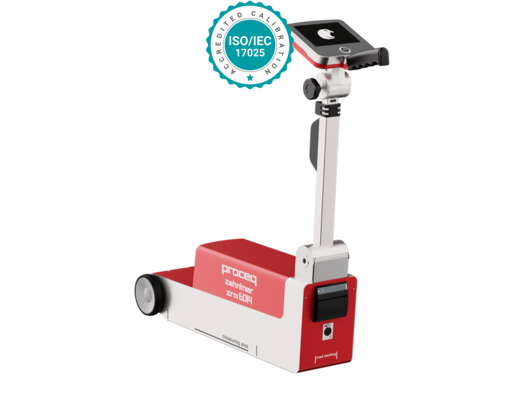

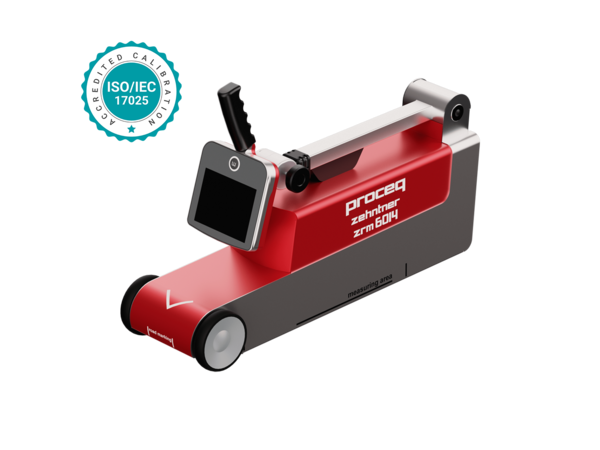

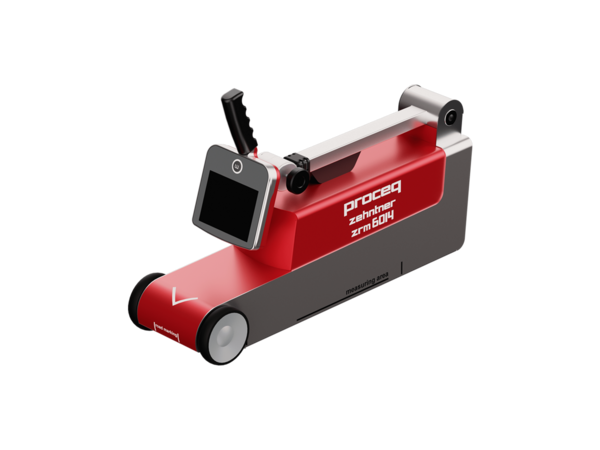

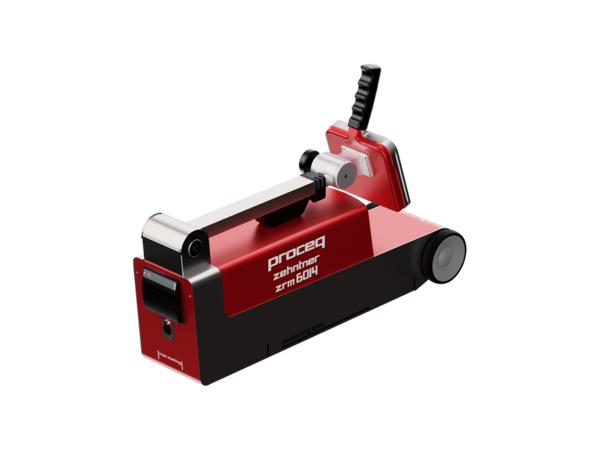

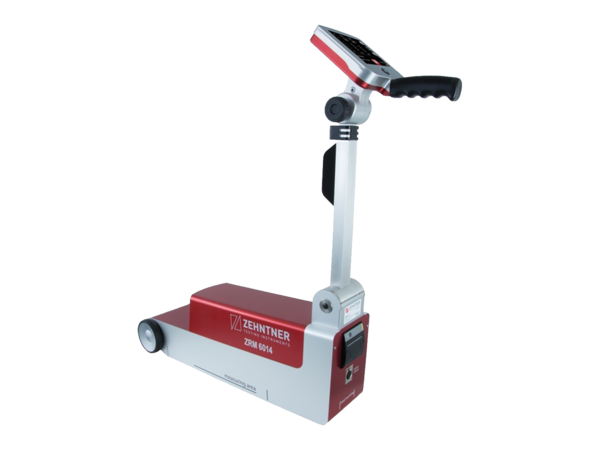

ZRM 6014 RL-Qd

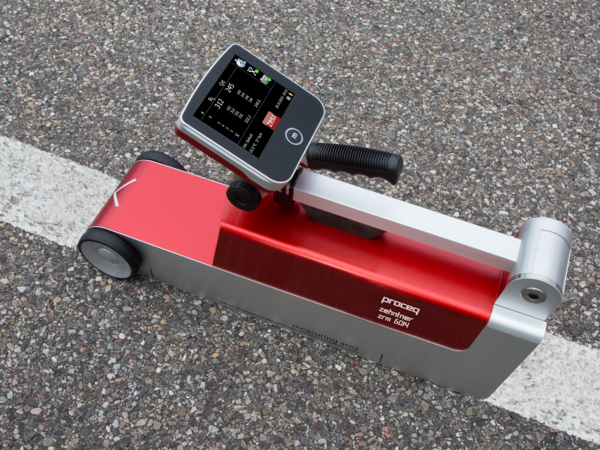

Day and night visibility measurement of road markings with retroreflectometry

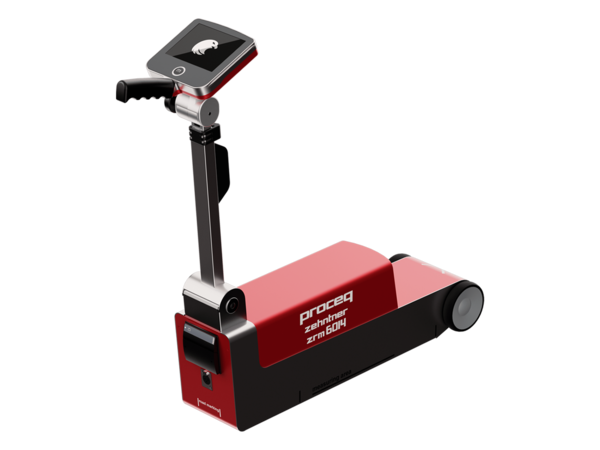

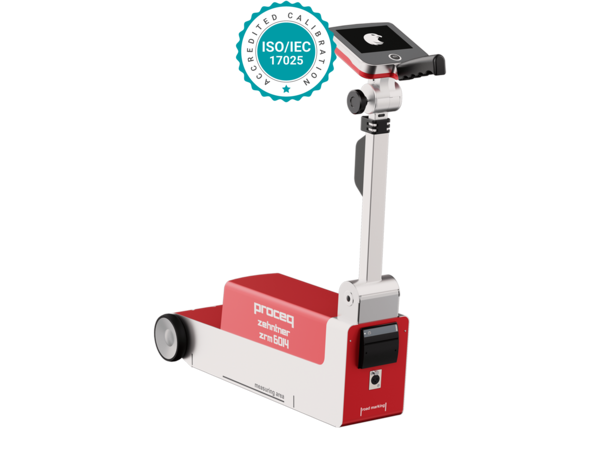

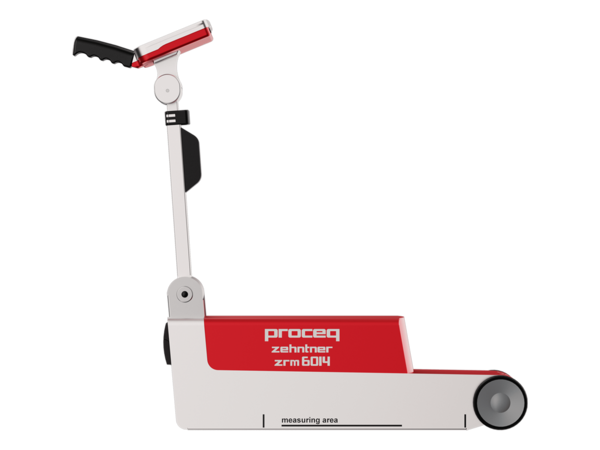

  • Fold-away telescopic handle
  • Ultrafast retroreflection measurement
  • Precise geolocation and high-res images.

Applications:

Determination of day visibility (Qd) of road and airport markings / Determination of night visibility (RL) of road and airport markings / Use on all types of road and airport markings / Field and laboratory use / Quality assessment

Expert level. Day and night visibility. All types of road and airport markings.
/Media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Versatility
Fold-away telescopic handle and wheels standard allowing for superior portability. Gather data for night and day visibility effectively, anytime and on any road surface.
/Media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Accuracy.svg
Accuracy
Intelligent electronics paired with Swiss Made optics deliver a new benchmark of measurement, accuracy, and ultrafast retroreflection measurement (RL and Qd) in about 2 seconds
/Media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Productivity-10.svg
Productivity
Refine your measurements with precise geolocation and high-res images. The user-friendly software makes comprehensive reports quickly and with ease.

Swiss Made
ZRM 6014 RL-Qd Tech Specs
Sensor
Tech Specs
Technology
High-resolution Camera
Optional compass and level-meter

Display
Touchscreen 5.7“ colour TFT (LCD), LED backlight, VGA resolution

Memory
1 GB internal flash memory

Measurement Modes
RL dry (night visibility)
RL wet (night visibility)
Qd (day visibility)
°C/°F (ambient temperature)
rH % (relative humidity)

Measuring Area
(WxL): 52 mm x 218 mm (2.05" x 8.58")

Measuring Range
RL: 0 - 4’000 mcd•m-2•lx-1
Qd: 0 - 400 mcd•m-2•lx-1

Measuring Accuracy
Repeatability ± 2 %

Observation Angle
EN 1436 & ASTM E2302: 2.29°
ASTM E1710: 1.05°

Illumination Angle
RL: EN 1436: 1.24°
RL: ASTM E1710: 88.76°
Qd: diffuse

Weight
7.6 kg (16.76 lbs )

Operating Temperature
-10°C to +50°C (14°F to 122°F)

Innovation Award
Other customers also purchased:
FAQ

What is retroreflection (night visibility)
Retroreflection, also called night visibility, is a specific type of light reflection when the light rays goes on a surface and comes back to the source of light. This principle is a pillar in road safety. Indeed, the vehicles lamps during the night enable to see the road markings, road signs and conspicuity tapes. A retroreflectometer is used to measure the retroreflection performance of the surface. The retroreflection (often written “R”) is measured in mcd. m-2. lx-1.

What is day visibility?
Day visibility is the luminance coefficient under diffuse illumination (from the sun or urban lightning). This principle is important in road safety. Vehicles drivers must be able to see the road markings and signs . A retroreflectometer is used to measure the day visibility performance of the surface. The day visibility (written “Qd”) is measured in mcd. m-2. lx-1
