Hardness Testing

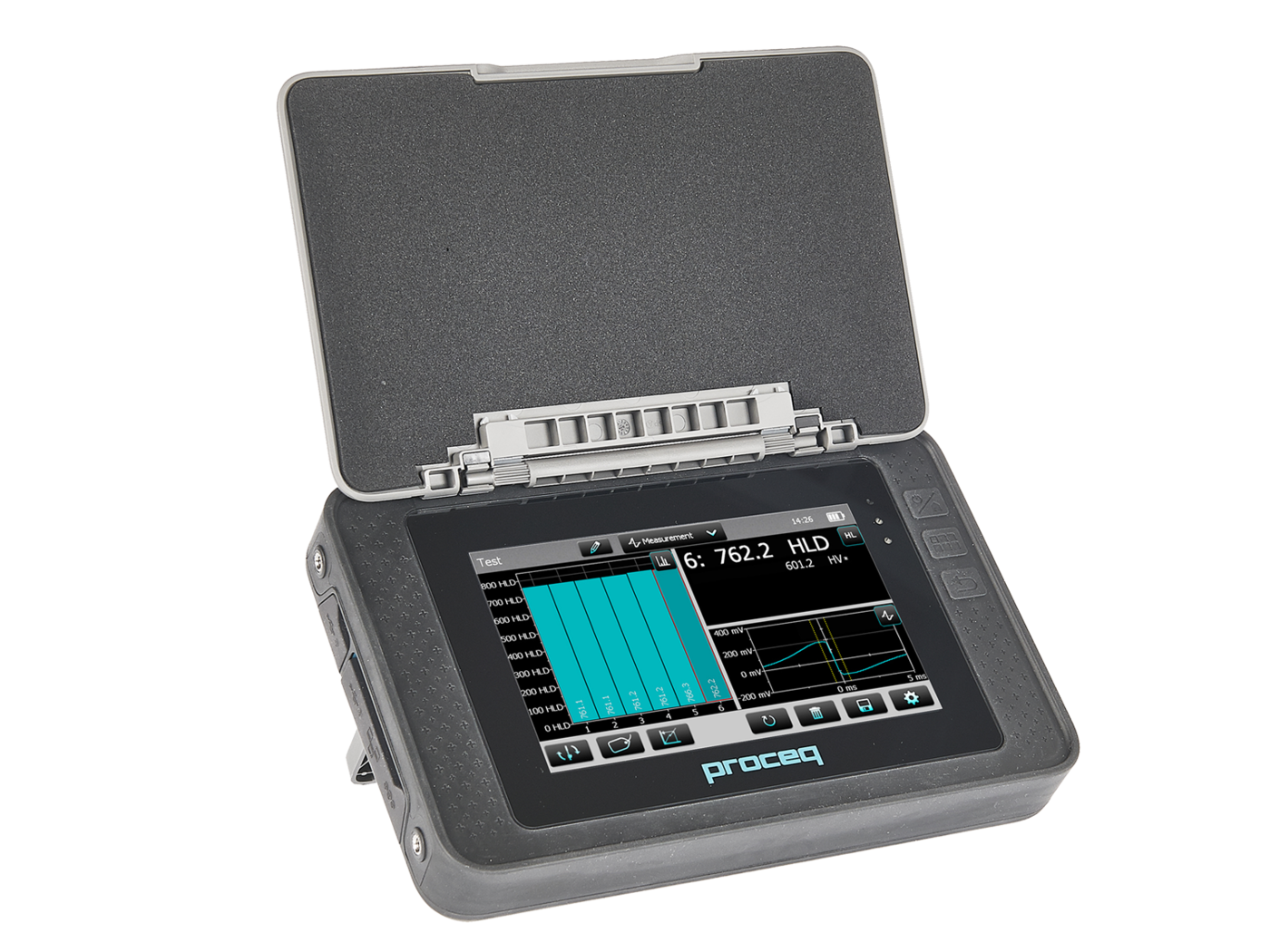

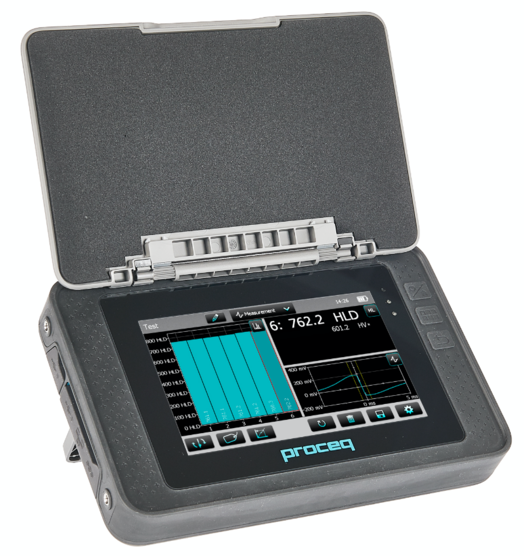

Equotip 550 (platform only)

Highly robust and advanced measuring system
  • Swiss quality, accuracy, and reliability combined with powerful software features
  • World's broadest selection of probes and conversion tables
  • A fully rugged casing and long-lasting probes

Applications:

Hardness testing of casts, flanges, shafts, and bars/pipes / Near-line Quality Control / Heat-treated surfaces

The highest accuracy, durability, and functionality from the inventor of the Leeb method
/Media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Reliability.svg
Reliability
The unmatched lifespan of probes and impact bodies, lasting four times longer than others on the market.
/Media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Productivity-17.svg
Productivity
Comes with the most complete probe portfolio, the broadest material conversion tables including Proceq's own research and world's widest standard conversion.
/Media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_User%20Experience.svg
User Experience
Ready-to-go reports through powerful built-in reporting feature, along with fully customizable views, multiple wizards, and material selection assistant.
Equotip 550 (platform only) Tech Specs
Sensor
Tech Specs
Native Scale
HLx (x: D, DC, DL, S, E, G, C)

Available Scales
HB, HV, HRA, HRB, HRC, HS, MPA (σ1, σ2, σ3)

Available Probes
Leeb D / DC / DL / S / E / G / C

Combination With Other Methods
Portable Rockwell, UCI

Average Roughness Ra (µm / µinch)
7 / 275 (Leeb G)

Minimum Mass (kg / lbs)
0.02 / 0.045 (Leeb C)

Minimum Thickness (mm / inch)
1 / 0.04 (Leeb C)

Instrument Firmware
Automatic compensation for impact direction
Personalized user profiles and views
Integration in automated testing environments (incl. remote control)
11 Languages and timezone supported
Measurement wizards
Custom curve wizard
Combined method wizard
User guidance features
Custom report features

Custom conversion curves
Yes, 1-point shift, 2-point, polynomial

Pc Software
Equotip Link allowing direct reporting and custom reports

Display
7” color rugged touchscreen unit (800 x 480 pixels) with dual core processor

Memory
Internal 8 GB flash memory (> 1’000’000 measurements)

Connections
USB host / device and Ethernet

Verification according to
ISO 16859, ASTM A 956, custom method, combined method

Measuring Range
150 - 950 HL

Protection
IP54, fully rugged with shock-absorbing casing

Measuring Accuracy
± 4 HL (0.5% at 800 HL)

Coefficient of variation
± 4 HL (0.5% at 800 HL)

Innovation Award
Other customers also purchased:
FAQ

What parameters are important when choosing the right Leeb probe?
Minimal mass of the tested piece Minimum requirements for the surface roughness (and corresponding time) Sample accessibility Materials microstructure (coarser grains are preferably measured by the probes with higher impact energy Indentation (dent) depth and diameter

What Leeb probe has the lowest impact energy?
It is Probe type C with 3 Nmm (vs. 11 nMm for probe D), its suitable for surface-treated materials or small objects, however it must fulfill the requirements specified by the standards and by Proceq.

Is Leeb easy to use ?
Yes, very easy and has very high repeatability. The exception is a DL probe, which has presumably higher inertia due to the elongated impact body and unstable base of the probe. Due to this, the probe is known to be slightly user-dependant.

Can small objects be investigated with Leeb?
Yes, but only if they follow the requirements specified by Proceq. Samples can be measured as coupled and uncoupled. The wall thickness and mass of the test object can influence hardness testing according to Leeb or UCI. Applicable standards require a minimum wall thickness and minimum mass. If these requirements cannot be fulfilled, additional measures such as coupling or supporting the specimen are necessary. Uncoupled: Requirements for the Leeb method (impact device D, DL, DC, E, and S) are that parts must weigh at least 5 kg (11 lbs) and have a minimum thickness of 25 mm (0.98 inches) to prevent them from yielding or flexing under the large force created during the time of impact. For the Leeb G this is accordingly higher with a mass of 15 kg (33 lbs) and a thickness of 70 mm (2.73 inches), while for Leeb C, a mass of 1.5 kg (3.3 lbs) and a thickness of 15 mm (0.59 inch) is already enough. On solid support: 2 kg/4.5 lbs (D, DC, DL, E, S), 0.5 kg / 1.1 lbs (C), 5 kg / 11 lbs (G) Coupled: 0.05 kg / 0.2 lbs (D, DC, DL, E, S), 0.5 kg / 1.1 lbs (C), 0.5 kg / 1.1 lbs (G)

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Standards & Guidelines

Standards

  • Arrow, click names to download Standards & Guidelines ASTM A 370
  • Arrow, click names to download Standards & Guidelines ASTM A 956
  • Arrow, click names to download Standards & Guidelines ASTM E 140
  • Arrow, click names to download Standards & Guidelines DIN 50156
  • Arrow, click names to download Standards & Guidelines GB/T 17394
  • Arrow, click names to download Standards & Guidelines ISO 16859
  • Arrow, click names to download Standards & Guidelines ISO 18265
  • Arrow, click names to download Standards & Guidelines JB/T 9378

Guidelines

  • Arrow ASME CRTD-91
  • Arrow DGZfP Guideline MC 1
  • Arrow Nordtest Technical Reports 424-1, 424-2, 424-3
  • Arrow VDI / VDE Guideline 2616 Paper 1
