Half-cell Corrosion Potential

Profometer Corrosion

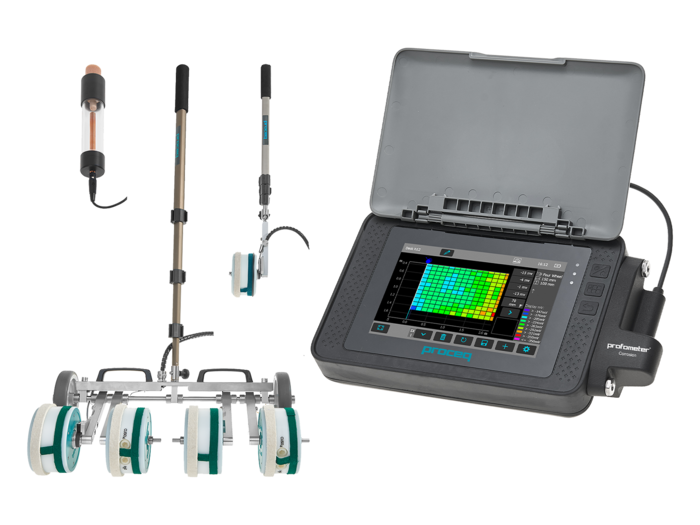

Advanced half-cell measuring instrument for on-site mapping of the corrosion potential

  • Unique wheel electrodes
  • Advanced processing
  • Easily upgradable
User-friendly corrosion sensor with an intuitive workflow and advanced capabilities
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Productivity-10.svg
Productivity

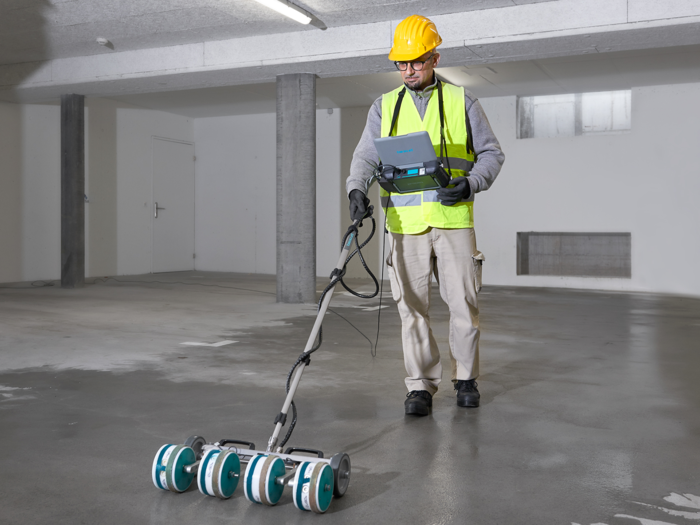

High productivity with unique wheel electrodes and optimized workflow
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Efficiency.svg
Efficiency
Advanced processing and custom reporting tools with exportable graphs and charts
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Future%20readiness.svg
Future readiness
Easy upgradable with cover meter functionality for combined testing
Software for
Tech Specs
Display unit

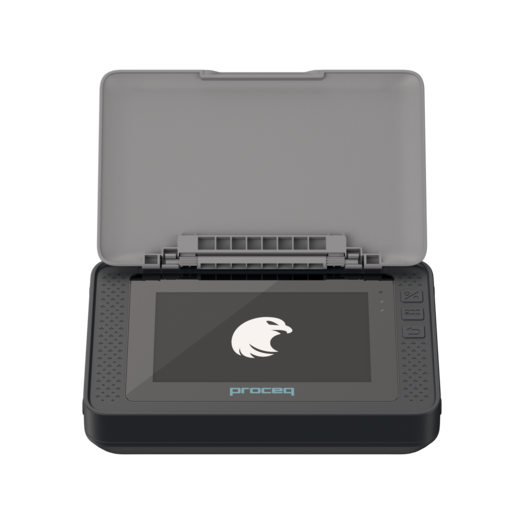

7” color rugged touchscreen unit (800 x 480 pixels) with a dual-core processor, IP54

Special Features
Support for Copper/Copper sulphate, Silver/Silver chloride and SCE Calomel electrodes

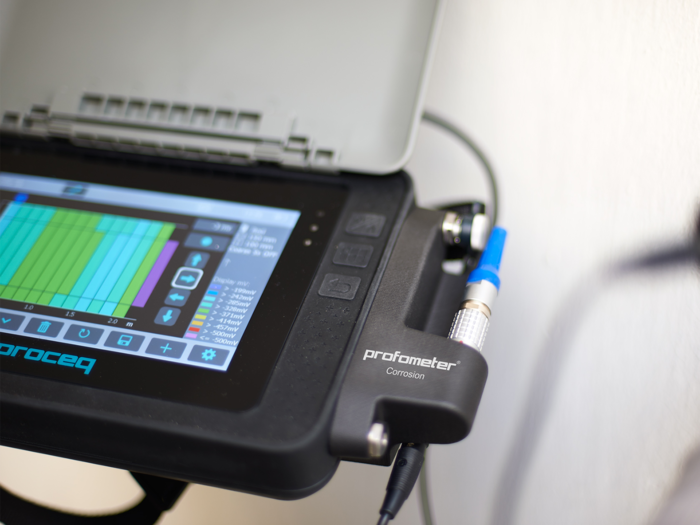

Corrosion scan heat map view
Distribution and cumulative distribution view for determination of threshold potentials
Chipping graph view for display of corroded areas based on the analysis

Display unit specs
Voltage measuring range: -999 to +999 mV
Memory: Internal 8 Gb flash memory
Voltage resolution: 1 mV
Input impedance: 100 mΩ
Sampling rate: 900 Hz
Power input: 12V ±25% / 1.5 A
Dimensions: 250 x 162 x 62 mm
Weight: 1525 g
Battery: 3.6 V, 14 Ah
Battery lifetime: > 8h
Humidity: <95% RH, non condensing
Operating temperature: -10°C to +50°C

PC Software
Profometer Link Reporting software for data analysis, merging of corrosion scans for large areas and irregular geometries, customized reporting and export to third party software
Profometer Corrosion Tech Specs
Instrument
Tech Specs
Measured Quantity
Corrosion potential [mV]

Accuracy
±1 mV

Instrument Firmware
Intuitive user-friendly interface for data acquisition
Optimized workflow for rod and wheel measurements
Customizable text can be entered for any specific locations
Flexible features enable the mapping of any irregular geometry
Improved digital filtering to remove the effect of external noise (civil and industrial power sources)
Create custom reports with exported graphs and charts

PC Software
Profometer Link Reporting software for data analysis, combined data evaluation, and reporting on any third party software

Display
7” color rugged touchscreen unit (800 x 480 pixels) with a dual-core processor

Memory
Internal 8 GB flash memory

Connections
USB host/device and Ethernet

Measuring Range
-999 to +999 mV

Probes / Electrodes

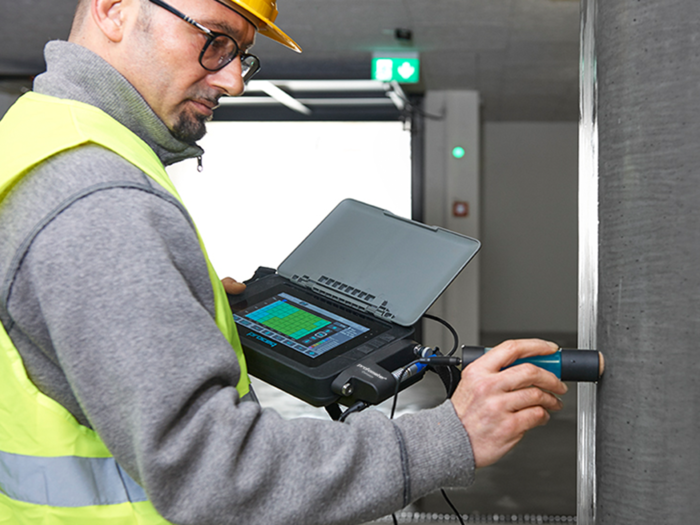

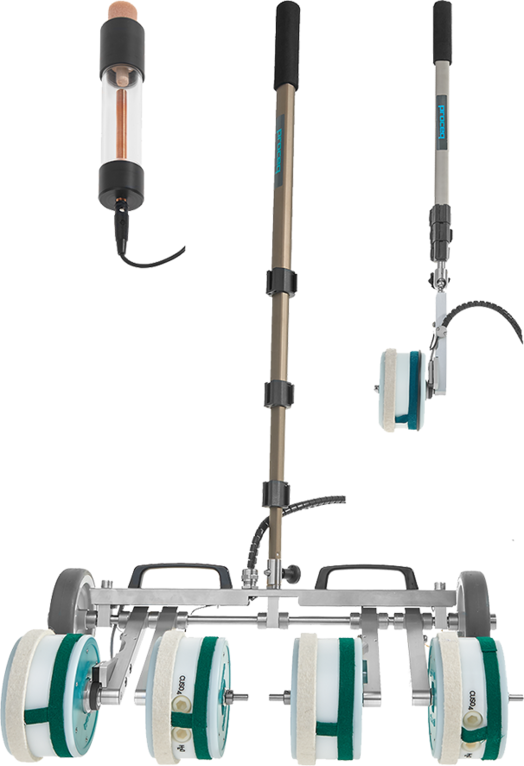

In addition to the basic rod electrode, the use of Proceq’s unique one and four-wheel electrodes enable the highest on-site productivity in large areas
Standards & Guidelines

Standards

  • Arrow, click names to download Standards & Guidelines ASTM C 876-15
  • Arrow, click names to download Standards & Guidelines DGZfP B3
  • Arrow, click names to download Standards & Guidelines JGJ/T 152 ( China )
  • Arrow, click names to download Standards & Guidelines JSCE E 601
  • Arrow, click names to download Standards & Guidelines RILEM TC 154-EMC
  • Arrow, click names to download Standards & Guidelines SIA 2006 ( Switzerland )
  • Arrow, click names to download Standards & Guidelines UNI 10174
  • Arrow, click names to download Standards & Guidelines ОДМ 218.3.001-2010
