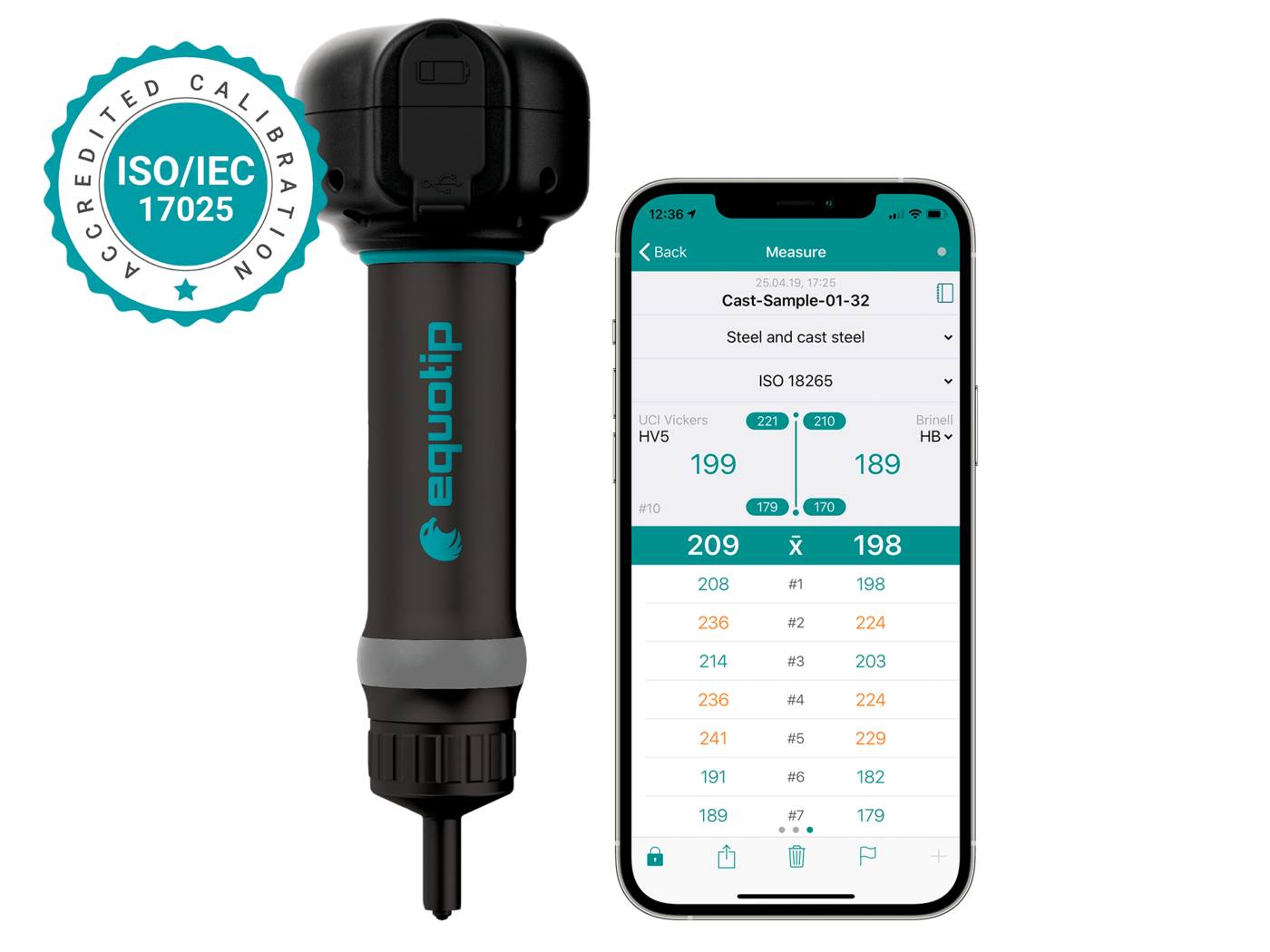

Equotip Live UCI

Wireless Portable Ultrasonic Contact Impedance (UCI) Hardness Tester

  • Unmatched versatility owed to HV1, HV5, and HV10 test loads in one wireless probe
  • High precision thanks to innovative and patented force-sensing technology
  • Enhanced productivity through a user-centric software interface

Applications:

Ultrasonic Inspection of Welds / Heat-treated surfaces / Wirelessly connect to Mobile App and Cloud

Experience the most portable and versatile UCI testing system on the market
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Versatility
Advanced wireless UCI system based on innovative and patented force-sensing technology enables various test loads in one probe design.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Productivity-17.svg
Productivity
Extremely efficient user interface and enhanced logbook built into our constantly evolving Equotip app enables documentation through photos, voice comments, and annotations.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_User%20Experience.svg
User Experience
Ultra-portable UCI probe with cloud connectivity built into modern IoT ecosystem with enabled data back-up, instant evaluation, and data sharing. Access your data from anywhere, anytime.
Equotip App
Powerful features with intuitive user interface
  • Intuitive user interface known from modern mobile devices
  • Enhanced logbook feature including text and voice notes, and photos of tested objects
  • Multiple data exporting possibilities (URL, PDF, CSV)

Available for PC and iOS with free over-the-air updates and continuous innovation.

Download the Equotip Live app and discover a truly flexible and collaborative workflow for hardness testing.

Icon Product AppStore
  • Intuitive user interface known from modern mobile devices
  • Enhanced logbook feature including text and voice notes, and photos of tested objects
  • Multiple data exporting possibilities (URL, PDF, CSV)

Available for PC and iOS with free over-the-air updates and continuous innovation.

Download the Equotip Live app and discover a truly flexible and collaborative workflow for hardness testing.

Equotip App
Custom materials
  • Flexibility for all applications, such as new or exotic materials and non-standard alloys
  • Custom curve conversion function based on major standards
  • Application of custom conversions to new and already-acquired data sets
Icon Product AppStore
  • Flexibility for all applications, such as new or exotic materials and non-standard alloys
  • Custom curve conversion function based on major standards
  • Application of custom conversions to new and already-acquired data sets
Equotip App
Compliance to standards
  • Probe verification according to selected standard
  • Documentation of verification stored in logbook
  • Wide range of conversion curves
Icon Product AppStore
  • Probe verification according to selected standard
  • Documentation of verification stored in logbook
  • Wide range of conversion curves
Equotip App
Collaboration and easy reporting
  • Web interface with visual report generation using lists, bar charts and statistics
  • Full logbook traceability supported by annotations (geo location, text, images of tested objects, changes to dataset)
  • Web data storage with multiple data sharing possibilities
Equotip Live_SW story_report.png
Icon Product AppStore
  • Web interface with visual report generation using lists, bar charts and statistics
  • Full logbook traceability supported by annotations (geo location, text, images of tested objects, changes to dataset)
  • Web data storage with multiple data sharing possibilities
SWISS MADE_horizontal lockup.svg
Software for Equotip App
Equotip App
Tech Specs
Instrument Firmware
iOS app including free updates
Hotspots with predefined shortcuts
Audio output of readings allow to keep mobile in the pocket
On-screen guides
Verification and calibration of information for higher reliability
PC Software
Web browser-based Equotip Live solution
Display
Any compatible iOS device (iPod Touch, iPhone iOS 9.0 and higher)
Memory
Memory of the iOS device
Custom conversion curves
Yes, one point shift
Cloud features
Cloud storage (matching that of Apple® iOS device)
Cloud-enabled Logbook
Cloud-based report generation
Mobile and web features
Voice read-out of each impact (Apple® iOS app only)
Logbook with geolocation, audio, image, and text annotations
Export to PDF and CSV
Series statistics
User interface languages
English, Chinese, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish
Equotip Live UCI Tech Specs
Instrument
Tech Specs
Native Scale
HV(UCI)
Conversion scales
HLD, HB, HRC, HRA, HRB, HR15N, HR15T MPA (σ1, σ2, σ3)
Measurement range
20-2000 HV
Indenter
ISO 6507-2 compliant, 136° Vickers diamond
Impact energy / Test force
HV1 (9.8 N), HV5 (49 N), HV10 (98N) in one probe
Accredited calibration
ISO/IEC 17025
Standard compliance
ASTM A1038
DIN 50159
GB/T 34205
Guidelines
ASME CRTD-91
ASTM A370
DGZfP Gudeline MC 1
VDI / VDE Gudeline 2616 Paper 1
Conversion standards
ASTM E140
ISO 18265
Proceq's own conversion curves
Measurement resolution
1 HV(UCI), 0.1 HRC
Measuring accuracy
± 2%
Measurement deviation (E)
Lower than DIN 50159 & GB/T 34205
Coefficient of variation (R)
Lower than DIN 50159 & GB/T 34205
Weight
234 g / 8.26 oz
Dimensions
77 x 62 x 185.5 mm / 3 x 2.4 x 7.3 in
PDF Version
Other customers also purchased:
Standards & Guidelines

Standards

  • Arrow, click names to download Standards & Guidelines ASTM A 1038
  • Arrow, click names to download Standards & Guidelines ASTM A 370
  • Arrow, click names to download Standards & Guidelines ASTM E 140
  • Arrow, click names to download Standards & Guidelines DIN 50159
  • Arrow, click names to download Standards & Guidelines GB/T 34205-2017
  • Arrow, click names to download Standards & Guidelines ISO 18265

Guidelines

  • Arrow ASME CRTD-91
  • Arrow DGZfP Guideline MC 1
  • Arrow VDI / VDE Guideline 2616 Paper 1
FAQ
How to extend the UCI Probe's longevity?
  • NEVER impact the surface with the probe, it may damage the diamond tip
  • NEVER slide the probe along the surface after initiating a penetration, it may damage the diamond tip
  • Regular service and verification in service...
