Hardness Testing

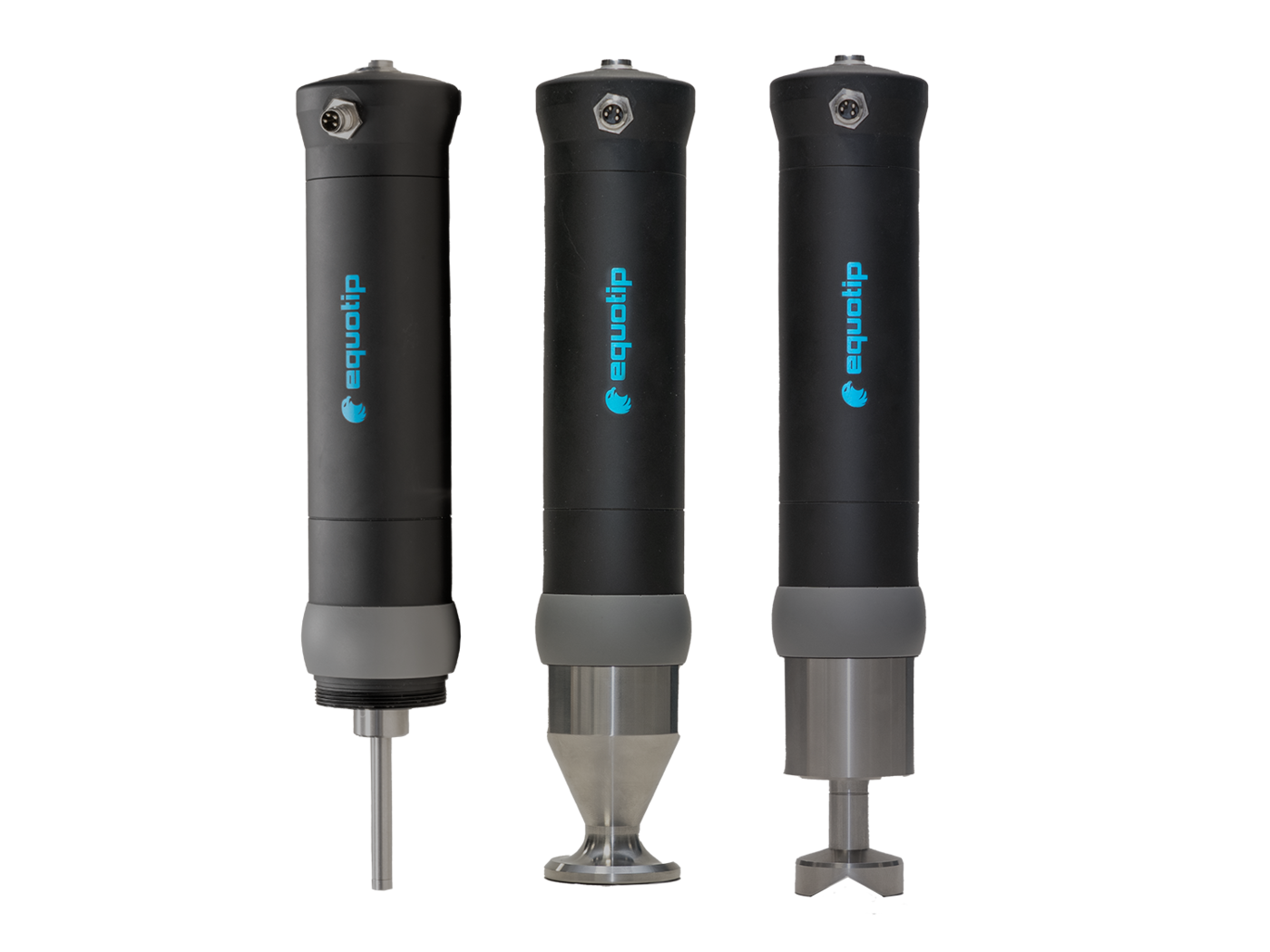

Equotip 550 UCI MOTO-03 & MOTO-08

The leading Ultrasonic Contact Impedance measurement system with advanced capabilities

  • Low indentation enables efficient testing of thin-coating, layers and polished surfaces

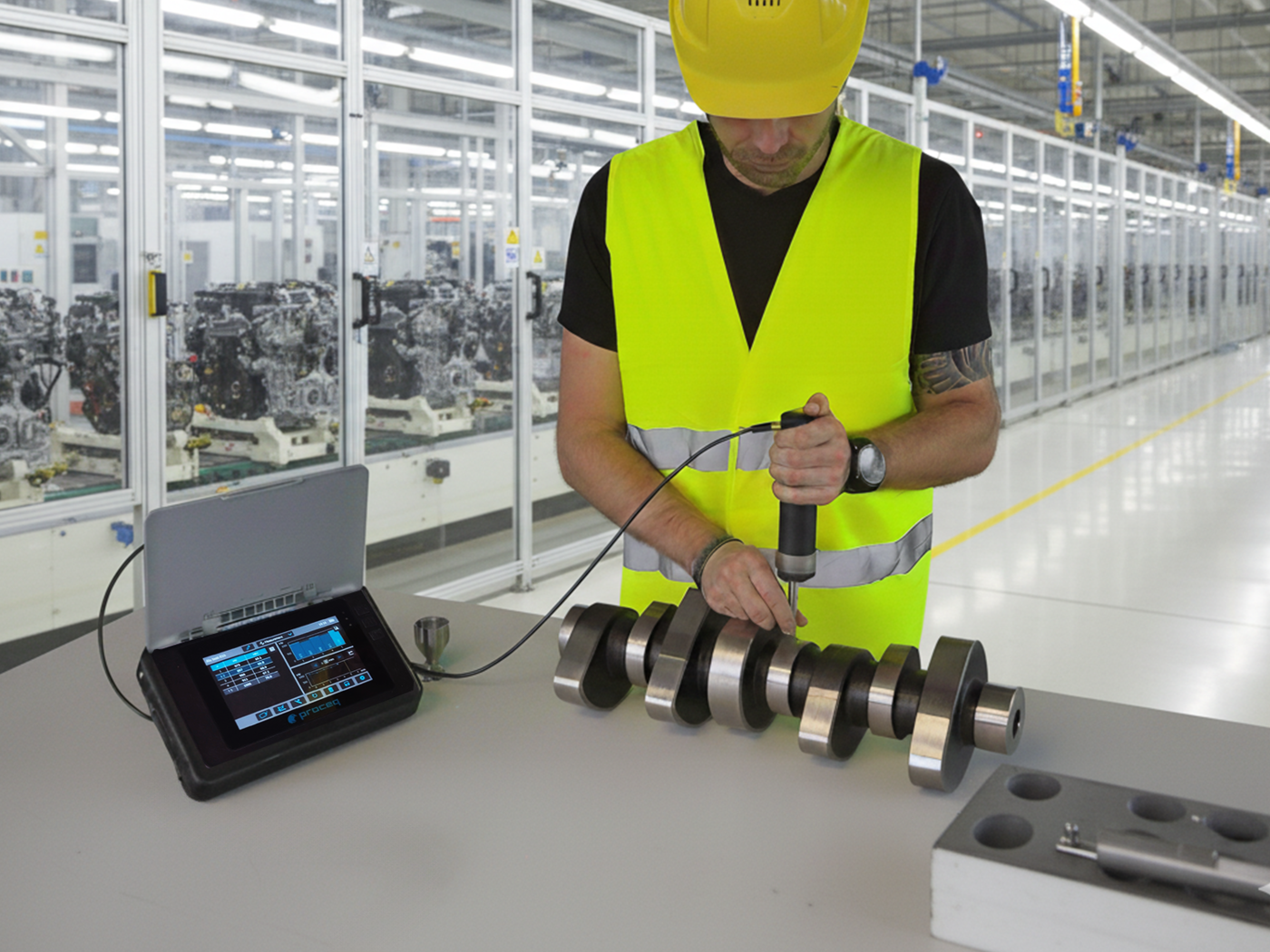

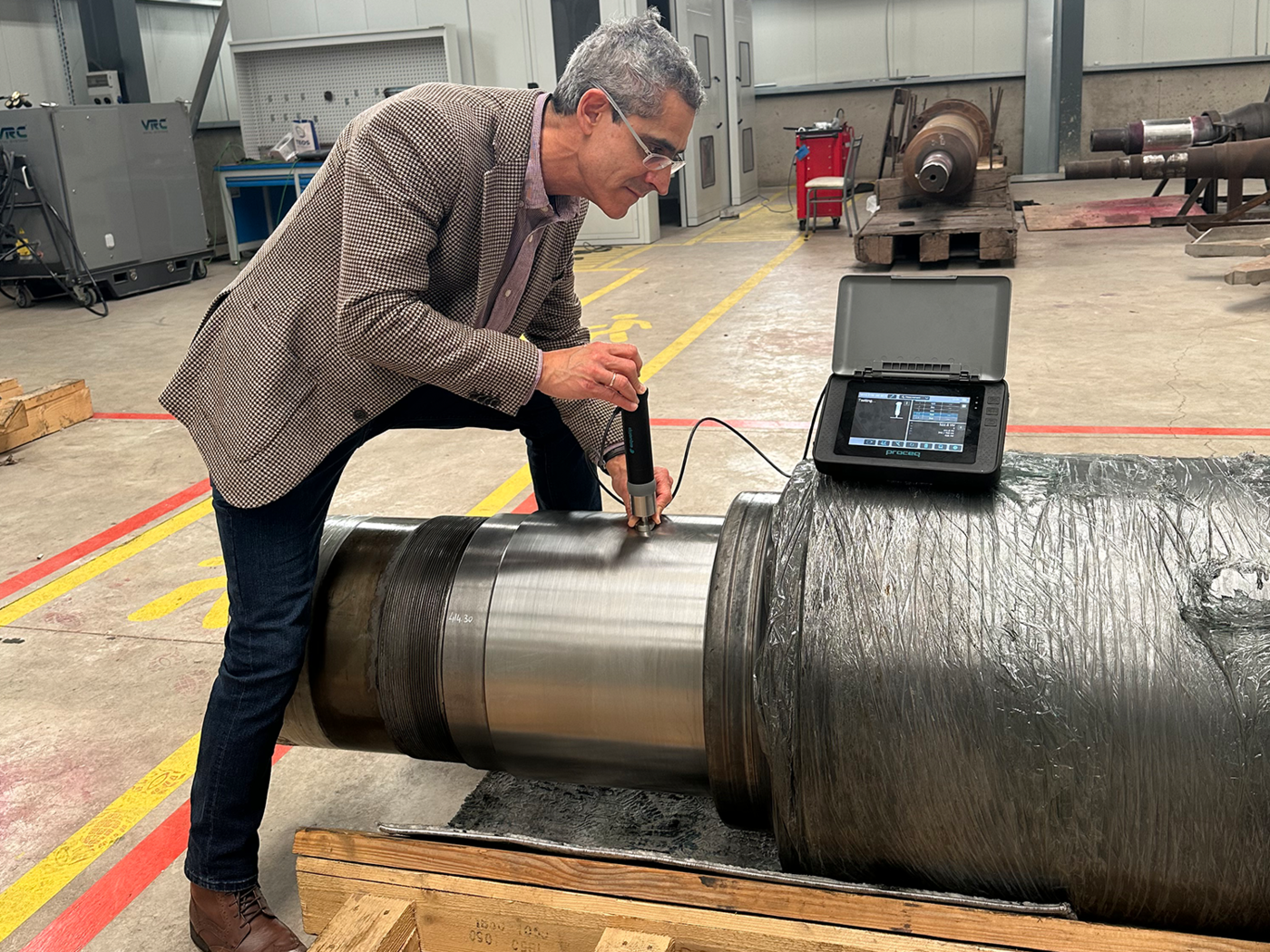

  • Ideal for lab and on-site precision micro-hardness testing
  • With good surface preparation, motorized probes are also suitable for testing thicker components

Applications:

Heat-treated surfaces / Hard Chromium/Nickel/Other Metallic Coatings / Rotogravure cylinders / Bearing race and bearings guide rail / Precision mold / Case hardening / Ion nitridated layers

Motor controlled test load application and a rugged touchscreen with enhanced software and analysis features
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Resolution%20and%20depth.svg
Consistency
Ensure low and consistent test load, which significantly reduces your impact on the measurement
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Adaptability
Calibrate with ease your probe to any material you want to test, thanks to advanced material calibration features
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_User%20Experience.svg
User Experience
Place, press, done. Use software to programme the penetration time to simulate the stationary Vickers testing device
SWISS MADE_horizontal lockup.svg
Software for Equotip 550 Platform
Equotip 550 Platform
Tech Specs
Equotip 550 Platform
Display
7” color capacitive touchscreen
Instrument protection
- IP54, fully rugged with shock absorbing casing,
- Scratch-resistant Gorilla® Glass screen protection,
- Circuit and connector protection against dust, debris, chemicals and voltage spikes
- Foldable additional screen cover for additional protection during storage and transportation
Memory
Internal 8 GB flash memory (> 1’000’000 measurements)
Combination with another testing method
Leeb, Portable Rockwell (PRT)
Connectivity
Ethernet & USB-B (PC connection), USB-A (PRT), Probe-specific slots
Battery
3.6V, Li-Ion, 14’000 mAh
Battery lifetime
> 10h (in standard operating mode)
Charging time
< 9h, < 5.5 h (External quick charger)
Power input
12V +/- 25% / 1.5A
Dimensions
250 x 162 x 62 mm / 9.87 x 6.37 x 6.44 in
Weight
1’525 g / 3.35 lbs. (incl. battery)
Humidity operation
< 95% RH, non-condensing
Operating temperature
(-) 10°C + 50°C / 14°F – 122°F
Certification
CE, KC, FCC
Equotip 550 Software Features
- Heat-Affected Zone (HAZ) maping tool
- Fully customizable reporting
- Customizable views
- Verification wizard
- Measurement wizard
- Mapping wizard
- Integration in automated testing environments (incl. remote control)
- Custom conversion curves (1-point, 2-point, polynomial)
- Built-in pdf creator
Conversion curves applicable for materials
- Steel and cast steel
- Aluminium
- Titanium Ti 6Al 4V
- Cast Iron
- Incoloy 825 / 2.4858
- 304L/1.4307
- Alloy 75/2.4630
- P/T91
Languages
English, German, French, Italian, Spanish, Portuguese, Turkish, Chinese, Korean, Russian, Japanese, Polish, Czech
Regional settings
Metric and imperial units, multi-language and time-zone
Audio support
Full digital audio
Desktop Software (Windows)
PC Software
Equotip Link for data download, management and export (CSV, PNG), Conversion curve management, and for upgrades of constantly expanding Equotip and Equotip Link Software
Language support
English, Chinese, Czech,German, Spanish, French, Italian, Korean, Japanese, Polish, Portugese, Russian, Turkish
Equotip 550 UCI MOTO-03 & MOTO-08 Tech Specs
Instrument
Tech Specs
Native Scale
HV(UCI)
Conversion scales
HLD, HB, HRC, HRA, HRB, HR15N, HR15T MPA (σ1, σ2, σ3)
Measurement range
40-1700 HV
Indenter
ISO 6507-2 compliant, 136° Vickers diamond
Impact energy / Test force
MOTO-03:HV0.3 (3N), MOTO-08 HV0.8 (7.8N)
Accredited calibration
Proceq's Laboratory Calibration (soon available with ISO 17025 accredited calibration)
Standard compliance
ASTM A1038
DIN 50159
GB/T 34205
Guidelines
ASME CRTD-91
DGZfP Guideline MC 1
VDI / VDE Guideline 2616 Paper 1
Conversion standards
ASTM A370
ASTM E140
ISO 18265
Proceq's own conversion curves
Recommended max surface roughness
Ra 0.8 (HV0.3), Ra 1.6 (HV0.8)
Measurement resolution
1 HV(UCI), 0.1 HRC
Measuring accuracy
HV:±3%
Measurement deviation (E)
Lower than DIN 50159, GB/T 34205, & ASTM A1038
Coefficient of variation (R)
Lower than DIN 50159 & GB/T 34205
Weight
618 g / 21.8 oz
Dimensions
234x Φ 46 mm (9.21 x Φ 1.81 inches) with foot
PDF Version
Other customers also purchased:
Standards & Guidelines

Standards

  • Arrow, click names to download Standards & Guidelines ASTM A 1038
  • Arrow, click names to download Standards & Guidelines ASTM A 370
  • Arrow, click names to download Standards & Guidelines ASTM E 140
  • Arrow, click names to download Standards & Guidelines DIN 50159
  • Arrow, click names to download Standards & Guidelines GB/T 34205-2017
  • Arrow, click names to download Standards & Guidelines ISO 18265

Guidelines

  • Arrow ASME CRTD-91
  • Arrow DGZfP Guideline MC 1
  • Arrow Nordtest Technical Reports 424-1, 424-2, 424-3
  • Arrow VDI / VDE Guideline 2616 Paper 1
FAQ
What influence does the chemical composition of a certain steel group has on the UCI measurement?

For example, will the result be different on 100Cr6, 100CrMnSi6-4 or 100CrMnMoSi8-4-6 ?

All the mentioned steel compositions have similar values of Elastic modulus (E), therefore the results will not be strongly affected...

See More
What is UCI particularly good for?

Inspection of HAZ (Heat Affected Zones) especially used in oil and gas in industry, inspection of lighter objects where Leeb can not be used due to weight limitation, inspection of areas that can not be reached by anything...

See More
What parameters are important when choosing the right UCI Probe?

There are several important parameters that shall be taken into account when selecting the UCI probe:

Minimum thickness of the object
If a coating is tested, then also the minimum thickness of the “coating“ which...

See More
What is the most used Load?

The HV5 (5kgf, 49.05 N) load is the most commonly used, especially within the Oil and Gas industry.

How to extend the UCI Probe's longevity?
  • NEVER impact the surface with the probe, it may damage the diamond tip
  • NEVER slide the probe along the surface after initiating a penetration, it may damage the diamond tip
  • Regular service and verification in service...
