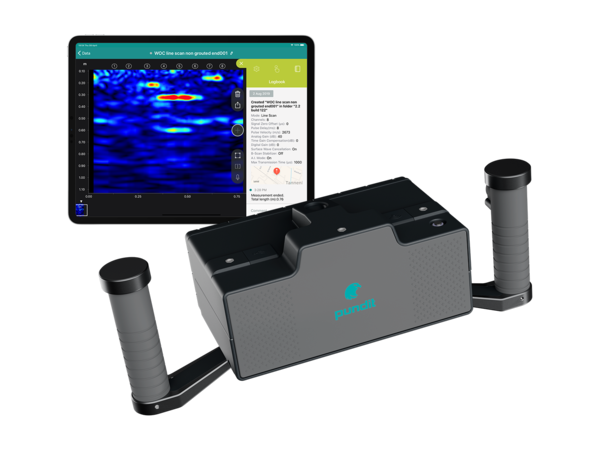

Consolidated power in a single device for structural imaging, object and defect detection with ultrasound pulse echo

  • Real-time imaging, weight optimization and AI assistance
  • Large scale 2D, 3D, heatmap and AR visualization modes
  • Superior image clarity with control of all transmission parameters

Applications:

Location of subsurface defects of concrete / Measurement of thickness of concrete elements / Determination of concrete pulse velocity for homogeneity and strength estimation

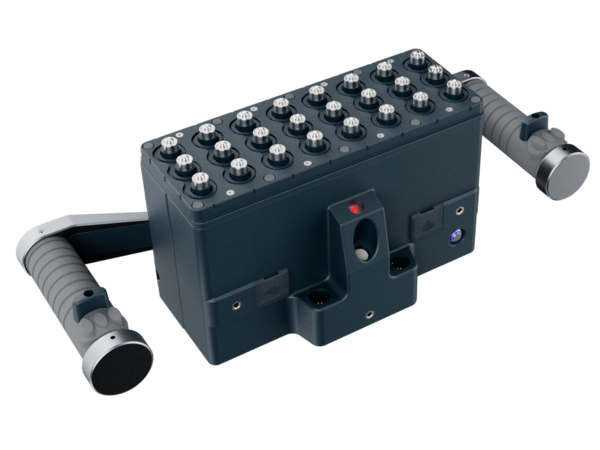

The World's Lightest Wireless Ultrasonic Imaging System with Augmented Reality and AI Capabilities
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Performance.svg
Efficiency

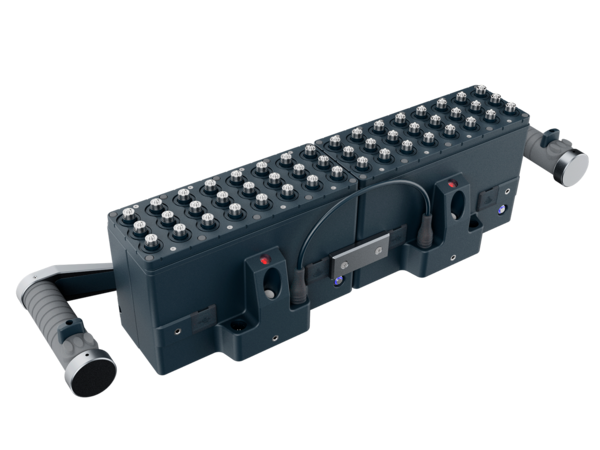

Have the power of the Pundit 200 PE, Pundit 250 Array and PD8000 with a single device. Enhanced wireless inspections with on-site, 2D, heatmap and high-resolution 3D imaging
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Future%20readiness.svg
Innovation
Experience the lightest, yet most intelligent pulse echo structural imaging device available on the market. Powered by ever-evolving software with AI and AR, to expand your inspection capabilities
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Productivity-17.svg
Productivity
Unbeatable productivity ensured by AI assisted positioning and data interpretation, real-time feedback of probe controls, immediate data visualization and easy report creation
Pundit Array
Advanced 3D Imaging with AI and AR

  • Free updates & releases
  • Customer-centric development
  • Unparalleled features to optimize workflow

Experience effortlessly precise, clear and deep concrete imaging. This intelligent, feature-rich app gets better and better over time, and it is available with subscription, so you always have access to continuous innovation and over-the-air updates. 10,000+ users have trusted us. See the software evolution so far…

  • Free updates & releases
  • Customer-centric development
  • Unparalleled features to optimize workflow

Experience effortlessly precise, clear and deep concrete imaging. This intelligent, feature-rich app gets better and better over time, and it is available with subscription, so you always have access to continuous innovation and over-the-air updates. 10,000+ users have trusted us. See the software evolution so far…

Pundit Array
App Version 1

Top capabilities introduced with App Version 1:

  • The world's first wireless ultrasonic pulse echo instrument with real-time B-scans.
  • Automated back wall echo detection
  • AI position detection for increased scanning speeds
  • 8 and 16 channel imaging capability
  • The world's first cloud storage for ultrasonic pulse echo measurements
  • Cloud data sharing for significantly improved collaboration
  • Object tagging for ease of interpretation
  • LogBook tracking of all user actions for full traceability

... and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top capabilities introduced with App Version 1:

  • The world's first wireless ultrasonic pulse echo instrument with real-time B-scans.
  • Automated back wall echo detection
  • AI position detection for increased scanning speeds
  • 8 and 16 channel imaging capability
  • The world's first cloud storage for ultrasonic pulse echo measurements
  • Cloud data sharing for significantly improved collaboration
  • Object tagging for ease of interpretation
  • LogBook tracking of all user actions for full traceability

... and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Pundit Array
App Version 2

Top new capabilities introduced with the free upgrade:

  • World’s first on-site pulse echo 3D imaging
  • TimeSlice view for C-scan visualization
  • 3D view for full volume visualization
  • Extended range through a user-definable max. transmission time
  • Improved surface wave cancellation
  • Improved raw data export up to 100 Mb
  • Panning and zooming of the A-scan signal
  • Improved WiFi connectivity

... and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top new capabilities introduced with the free upgrade:

  • World’s first on-site pulse echo 3D imaging
  • TimeSlice view for C-scan visualization
  • 3D view for full volume visualization
  • Extended range through a user-definable max. transmission time
  • Improved surface wave cancellation
  • Improved raw data export up to 100 Mb
  • Panning and zooming of the A-scan signal
  • Improved WiFi connectivity

... and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Pundit Array
App Version 4

Top new capabilities introduced with the free upgrade:

  • Augmented reality (AR) for 3D image projection onto the test surface
  • High definition focus for improved image resolution
  • Macro settings (variable frequency, voltage and transmission time) for better near field resolution and extended range
  • Colour depth feature for improved interpretation of 3D images
  • Image stabilization to reduce flicker when stitching images
  • Cloud-based reporting to HTML
  • Unlimited zoom-out functionality for the line scan view

... and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top new capabilities introduced with the free upgrade:

  • Augmented reality (AR) for 3D image projection onto the test surface
  • High definition focus for improved image resolution
  • Macro settings (variable frequency, voltage and transmission time) for better near field resolution and extended range
  • Colour depth feature for improved interpretation of 3D images
  • Image stabilization to reduce flicker when stitching images
  • Cloud-based reporting to HTML
  • Unlimited zoom-out functionality for the line scan view

... and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Pundit Array
App Version 5

Top new capabilities introduced with the free upgrade:

  • Augmented reality (AR) to project the grid scan heat map onto the test surface
  • Support for the new PD8050 sensor hardware
  • Grid scan mode added for mapping thickness variations
  • Enabled grid scan mode for mapping pulse velocity variations
  • Direct user control over transmission frequency
  • Full control over transmission voltage
  • Direct user control over the maximum transmission time
  • Updated SAFT algorithm for enhanced image quality
  • Improved raw data offset handling for increased accuracy of depth estimations
  • Support for USB-C cable connectivity for use in wireless restricted areas (coming soon)

... and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top new capabilities introduced with the free upgrade:

  • Augmented reality (AR) to project the grid scan heat map onto the test surface
  • Support for the new PD8050 sensor hardware
  • Grid scan mode added for mapping thickness variations
  • Enabled grid scan mode for mapping pulse velocity variations
  • Direct user control over transmission frequency
  • Full control over transmission voltage
  • Direct user control over the maximum transmission time
  • Updated SAFT algorithm for enhanced image quality
  • Improved raw data offset handling for increased accuracy of depth estimations
  • Support for USB-C cable connectivity for use in wireless restricted areas (coming soon)

... and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.


SWISS MADE_horizontal lockup.svg
Software for Pundit Array
Pundit Array
Tech Specs
Display Unit
Any compatible Apple® iPad
(iOS 11.0 and higher)¹

Workspace Integration
App synchronization
Share via URL
Automatic logbook
Raw data export
HTML export
Instant report generation

Special Features
High definition focus view
Macro view – variable frequency and voltage
Wide panoramic B-scan
Augmented Reality
3D view
AI-assisted positioning
AI-assisted feature interpretation
Image stabilizer

Display Unit Specs²:
Screen size: From 7.9" to 12.9"
Resolution: Up to 2732-by-2048
Memory: Up to 2TB
Weight: Down to 301 g / 10.6 oz
Camera: Up to 12MP Wide and 10MP Ultra Wide
Optional: USB-C, 5G, Face ID

Display Unit Sensors³:
LiDAR Scanner (optional)
Three-axis gyro
Accelerometer
Ambient light sensor
Barometer
Built-in GPS/GNSS

1. Recommendation: The newest models enhance performance, number of sensors and optional capabilities.
2, 3. Depending on iPad model

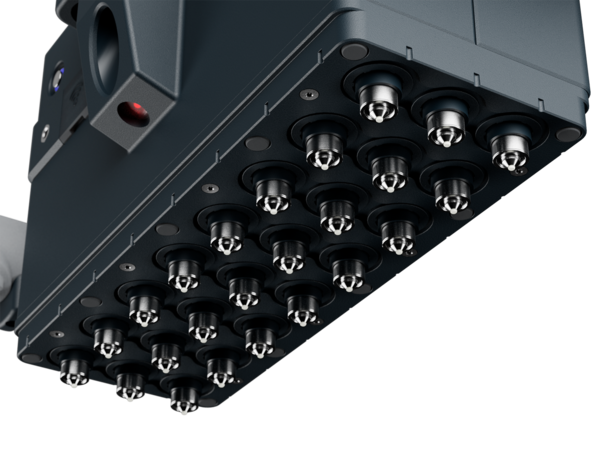

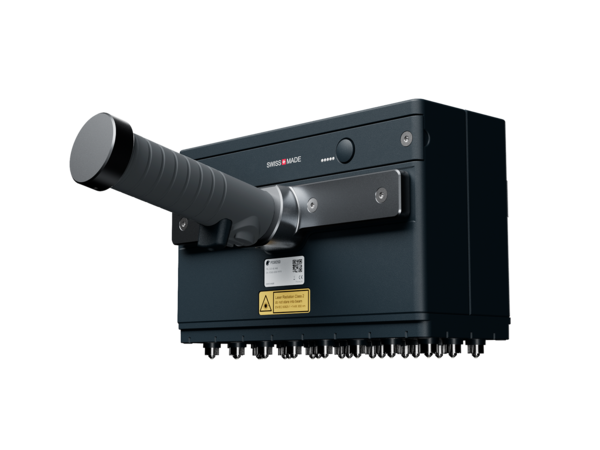

PD8050 Tech Specs
Instrument
Tech Specs
Applications
Void and delamination detection
Bonding assessment
Thickness measurement
Honeycombing detection
Fiber concrete
Concrete hit prevention
Imaging of closely spaced rebars

Bandwidth
20 - 80 kHz

Technology
Multi-channel Ultrasonic Pulse Echo

Measuring Resolution
1 us

Pulse Voltage
±50 to ±150 V
(UPE)

Receiver Gain
1 to 10’000
(0 to 80 dB)

Report Generation
Cloud synchronization
Share via URL
Cloud-enabled logbook
Cloud-based raw data export
Cloud-based HTML export
Cloud-based report generation

Measurement Modes
Line scan
Stripe Scan
Grid Scan

Measuring Range
Up to 2 m / 6.6 ft depending on concrete quality

Review modes
A-scan (incl. envelope)
B-scan (Line view)
C-scan (Time-Slice view)
Heat map (depth)
Heat map (pulse velocity)

Battery
Battery pack, 6x AA (NiMH), flight-safe

Display
Any compatible Apple® iPad (iOS 11.0 and higher)¹

Memory
Apple® iPad specified

Connections
Encrypted Wi-Fi connection to Apple® iOS tablet
USB port for Wi-Fi module
USB-C for Wi-Fi restricted areas
Other customers also purchased:
Our Accessories
32540434

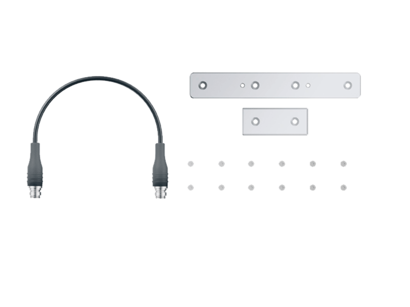

16 channel connection kit
16 channel connection kit

16 channel connection kit (32540434)

32730418S

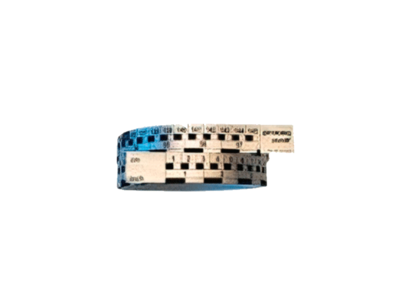

Pundit Live tape measure (set of 10)
Pundit Live tape measure (set of 10)

Measurement accessory (32730418S) Pundit Live tape measure (set of 10)

79330235
UTH100 Universal tablet holder for Proceq GPR and Pundit PD
UTH100 Universal tablet holder for Proceq GPR and Pundit PD

Universal tablet holder for direct mounting on Proceq GPR 8000/8100 and Pundit PD8050

Fully adjustable to accommodate any size of iPad up to 12.9”

79330345
UHA100 - Universal tablet holder with chest strap
UHA100 - Universal tablet holder with chest strap

Chest harness kit for hands free operation of all iPad app based instruments:
GP8000, GP8100, GP8800, PD8050, PM8000, PI8000

Can also be used as an iPad stand

Fully adjustable to accommodate any size of iPad up to 12.9”

Standards & Guidelines

Standards

Europe
  • Arrow, click names to download Standards & Guidelines EN12504-4, EN13791

Guidelines

  • Arrow ACI 228.2R-13
  • Arrow DGZfP Merkblatt B4
  • Arrow RI-ZFP-TU
  • Arrow ZTV-ING Teil 5 Tunnelbau
FAQ

Is it possible to detect grouting defects in tendon ducts with ultrasonic pulse echo?

Ultrasonic pulse echo is one of the only technologies that is able to detect grouting defects in tendon ducts. The technique is based on variations in the amplitude detectable in grouted and non-grouted sections. Fully...

See More

Is it possible to measure steel fibre reinforced concrete with ultrasonic pulse-echo?

Yes. Unlike electromagnetic methods such as those employed by GPR and cover meters, which do not work on steel fibre reinforced concrete, ultrasonic pulse echo is well suited for measuring on this material. It has been...

See More

Is it possible to combine multiple stripe scans in the Pundit Live Array app?

With the Pundit Live Array App, you can create a single stripe scan limited to 1.5m in length. If you wish to combine multiple stripe scans to create a wide-area 3D image, this can be done using the Pundit Vision software....

See More

Are there any standards for pulse echo testing?

Pulse echo testing is included in the European standard EN 12504-4 for pulse velocity determination. This is then subsequently included in the standard EN13791 for in-situ compressive strength estimation. The application...

See More

Is it possible to detect water filled voids with ultrasonic pulse echo?

Yes, it is possible to detect water-filled voids. One of the reasons that shear waves are used in the Pundit PD8000 instruments is that in comparison with P-waves (compression waves), they are better suited to detecting...

See More

How close to the surface is it possible to measure with ultrasonic pulse-echo technology?

While this is being improved all the time it is possible to give a reference for this. A major study was carried out in Germany that deals with this topic. Here it was shown that 16 mm rebars could be detected with a...

See More

What is the purpose of the macro setting in the Pundit Live Array App?

The macro setting in the Pundit Live Array app adjusts the transmission frequency, the transmission voltage, and the maximum transmission time to optimize values for investigating objects in the near field, intermediate...

See More

Is it possible to detect voids below rebars using ultrasonic pulse echo?

Yes, ultrasonic pulse echo is the correct technology for detecting voids, honeycombs, and delaminations below the rebar grid. Whereas a dense rebar structure will block a GPR signal from penetrating deeper into the...

See More
