Compressive strength testing for softer materials.
Schmidt OS-120 Pendulum hammer for testing on softer material such as lightweight concrete, gypsum boards, fresh concrete and mortar used for brickwork joints
Schmidt OS-120 Pendulum hammer for testing on softer material such as lightweight concrete, gypsum boards, fresh concrete and mortar used for brickwork joints
Schmidt OS-120 Pendulum hammer for testing on softer material such as lightweight concrete, gypsum boards, fresh concrete and mortar used for brickwork joints
Schmidt OS-120 Pendulum hammer for testing on softer material such as lightweight concrete, gypsum boards, fresh concrete and mortar used for brickwork joints
Schmidt OS-120 Pendulum hammer for testing on softer material such as lightweight concrete, gypsum boards, fresh concrete and mortar used for brickwork joints
Schmidt OS-120
Schmidt OS-120
Schmidt OS-120
Schmidt OS-120
Schmidt OS-120

Schmidt Rebound Hammers

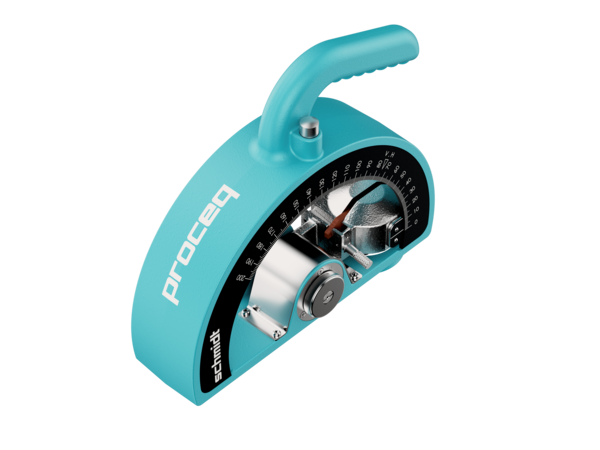

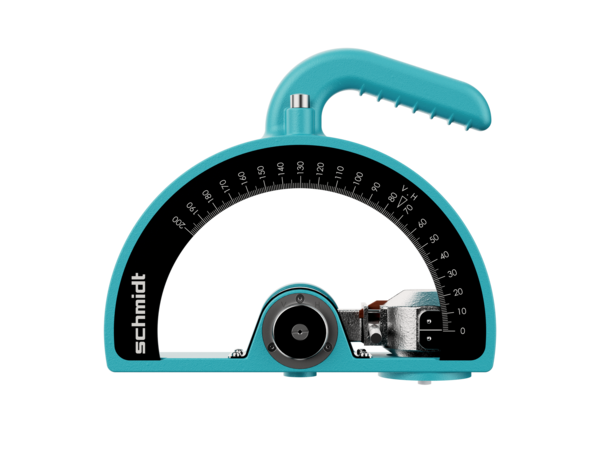

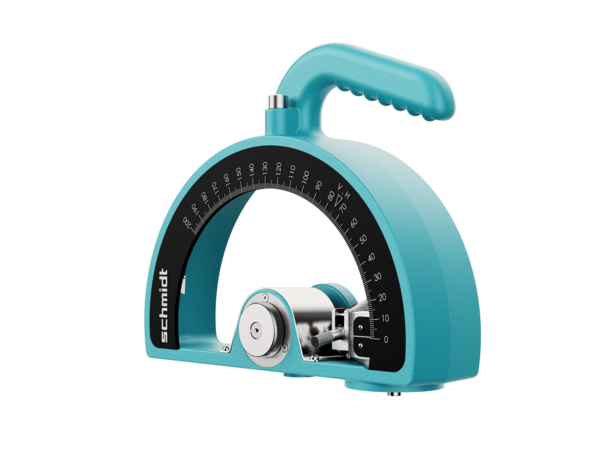

Schmidt OS-120

✔ In stock

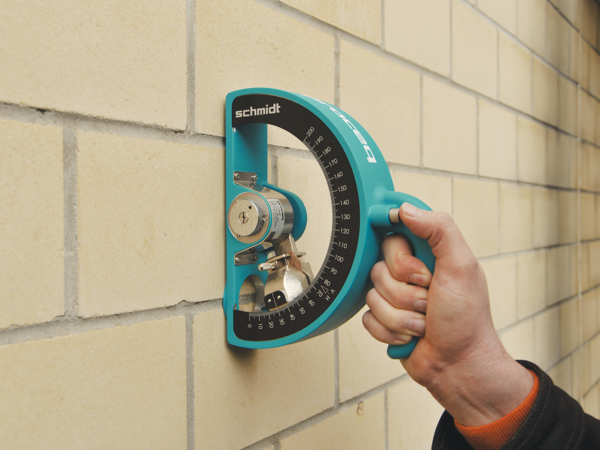

Pendulum hammer for testing on softer material such as lightweight concrete, gypsum boards, fresh concrete and mortar used for brickwork joints

  • Compressive strengths below 5 Mpa
  • Large, half circular scale with high resolution
  • Two models for fresh concrete and mortar applications

Applications:

Estimation of early strength development of concrete / Estimation of mortar strength of brickwork

Designed to test on softer materials accurately and below 5Mpa
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Resolution%20and%20depth.svg
Resolution & depth
Only rebound hammer that provides a test result at compressive strengths below 5 Mpa.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Versatility
Large, half-circular scale with high resolution.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_User%20Experience.svg
User Experience
Two models for fresh concrete and mortar applications.
SWISS MADE_horizontal lockup.svg
Schmidt OS-120 Tech Specs
Sensor / Instrument
Tech Specs
Impact Energy
0.833 Nm
Compressive Strength Range
1 to 5 N/mm2 (145 to 725 psi)
Display
Mechanical display
PDF Version
Other customers also purchased:
Standards & Guidelines

Guidelines

Asia-Pacific
  • Arrow Austrian Guideline for tunnel lining, published December 2012. Austrian Construction Association
  • Arrow TNO Report BI -88-009/61.8.2060-VOE from IBBC Delft Netherlands (Mortar joint testing)
