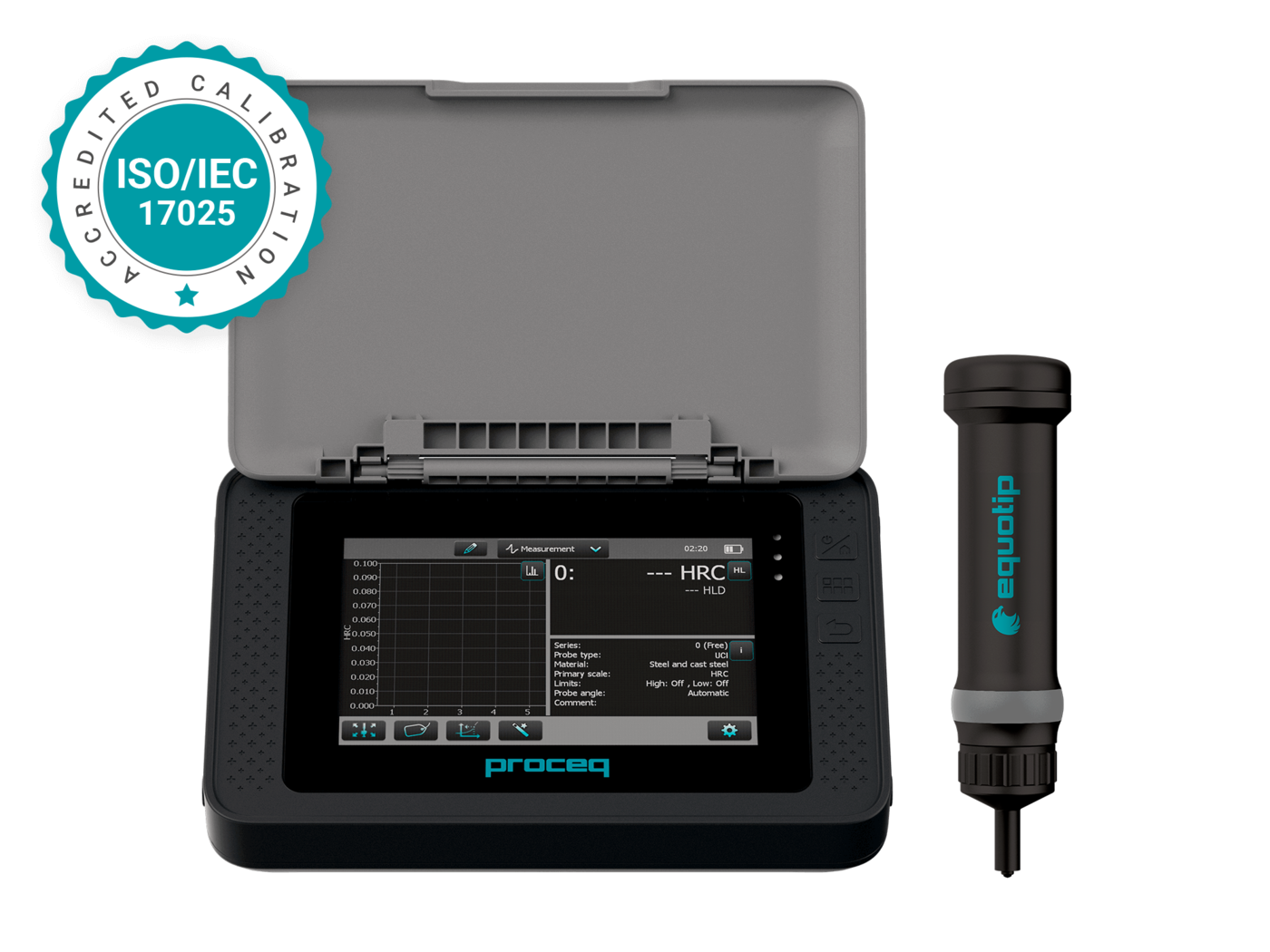

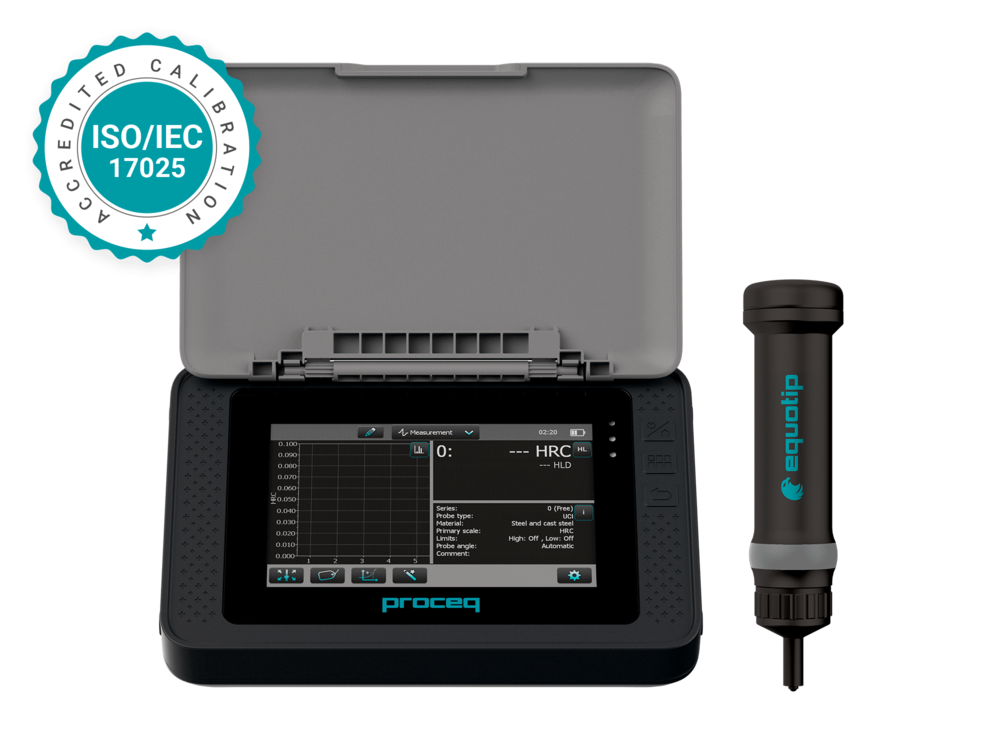

The leading Ultrasonic Contact Impedance measurement system with advanced capabilities

  • Unmatched versatility owed to HV1, HV5, and HV10 test loads in a single probe
  • Patented adjustable test load for higher accuracy on a wide range of applications
  • Powerful measurement device on the market packed in a rugged chassis

Applications:

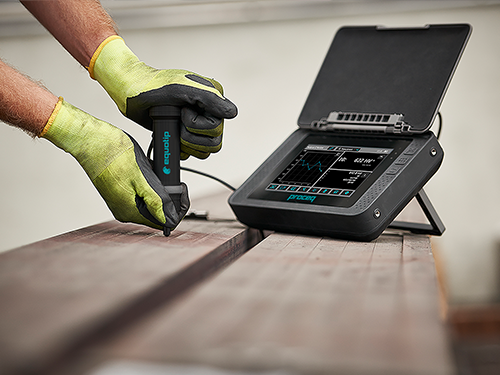

Ultrasonic Inspection of Welds / Ultrasonic Inspection of Cast and Forged Metals / Heat-treated surfaces

Adjustable test load and a rugged touchscreen with enhanced software and analysis features
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Resolution%20and%20depth.svg
Efficiency
Efficiency to the power of 2 thanks to three loads in one single probe HV1, HV5, and HV10 and possible combination with Portable Rockwell and Leeb in one device.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Productivity
Features with wizards, user guidance, personalised views, and on-screen feedback to reduce measurement inaccuracies that can be caused by the operator.
https://media.screeningeagle.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_User%20Experience.svg
User Experience
User guidance, smart material, and probe selection wizards, and ready-to-go reports through a powerful built-in reporting feature facilitate even short measurement campaign.
SWISS MADE_horizontal lockup.svg
Software for Equotip 550 Platform
Equotip 550 Platform
Tech Specs
Equotip 550 Platform
Display
7” color capacitive touchscreen
Instrument protection
- IP54, fully rugged with shock absorbing casing,
- Scratch-resistant Gorilla® Glass screen protection,
- Circuit and connector protection against dust, debris, chemicals and voltage spikes
- Foldable additional screen cover for additional protection during storage and transportation
Memory
Internal 8 GB flash memory (> 1’000’000 measurements)
Combination with another testing method
Leeb, Portable Rockwell (PRT)
Connectivity
Ethernet & USB-B (PC connection), USB-A (PRT), Probe-specific slots
Battery
3.6V, Li-Ion, 14’000 mAh
Battery lifetime
> 10h (in standard operating mode)
Charging time
< 9h, < 5.5 h (External quick charger)
Power input
12V +/- 25% / 1.5A
Dimensions
250 x 162 x 62 mm / 9.87 x 6.37 x 6.44 in
Weight
1’525 g / 3.35 lbs. (incl. battery)
Humidity operation
< 95% RH, non-condensing
Operating temperature
(-) 10°C + 50°C / 14°F – 122°F
Certification
CE, KC, FCC
Equotip 550 Software Features
- Heat-Affected Zone (HAZ) maping tool
- Fully customizable reporting
- Customizable views
- Verification wizard
- Measurement wizard
- Mapping wizard
- Integration in automated testing environments (incl. remote control)
- Custom conversion curves (1-point, 2-point, polynomial)
- Built-in pdf creator
Conversion curves applicable for materials
- Steel and cast steel
- Aluminium
- Titanium Ti 6Al 4V
- Cast Iron
- Incoloy 825 / 2.4858
- 304L/1.4307
- Alloy 75/2.4630
- P/T91
Languages
English, German, French, Italian, Spanish, Portuguese, Turkish, Chinese, Korean, Russian, Japanese, Polish, Czech
Regional settings
Metric and imperial units, multi-language and time-zone
Audio support
Full digital audio
Desktop Software (Windows)
PC Software
Equotip Link for data download, management and export (CSV, PNG), Conversion curve management, and for upgrades of constantly expanding Equotip and Equotip Link Software
Language support
English, Chinese, Czech,German, Spanish, French, Italian, Korean, Japanese, Polish, Portugese, Russian, Turkish
Equotip 550 UCI Tech Specs
Instrument
Tech Specs
Native Scale
HV(UCI)
Conversion scales
HLD, HB, HRC, HRA, HRB, HR15N, HR15T MPA (σ1, σ2, σ3)
Measurement range
20-2000 HV
Indenter
ISO 6507-2 compliant, 136° Vickers diamond
Impact energy / Test force
HV1 (9.8 N), HV5 (49 N), HV10 (98N) in one probe
Accredited calibration
ISO/IEC 17025
Standard compliance
ASTM A1038
DIN 50159
GB/T 34205
Guidelines
ASTM A370
ASME CRTD-91
DGZfP Gudeline MC 1
VDI / VDE Gudeline 2616 Paper 1
Conversion standards
ASTM E140
ISO 18265
Proceq's own conversion curves
Measurement resolution
1 HV(UCI), 0.1 HRC
Measuring accuracy
± 2%
Measurement deviation (E)
Lower than DIN 50159 & GB/T 34205
Coefficient of variation (R)
Lower than DIN 50159 & GB/T 34205
Weight
245 g / 8.6 oz
Dimensions
155 x ø 40 mm (6.1 x ø 1.57 inches) without foot
PDF Version
Other customers also purchased:
Standards & Guidelines

Standards

  • Arrow, click names to download Standards & Guidelines ASTM A 1038
  • Arrow, click names to download Standards & Guidelines ASTM A 370
  • Arrow, click names to download Standards & Guidelines ASTM E 140
  • Arrow, click names to download Standards & Guidelines DIN 50159
  • Arrow, click names to download Standards & Guidelines GB/T 34205-2017
  • Arrow, click names to download Standards & Guidelines ISO 18265

Guidelines

  • Arrow ASME CRTD-91
  • Arrow DGZfP Guideline MC 1
  • Arrow Nordtest Technical Reports 424-1, 424-2, 424-3
  • Arrow VDI / VDE Guideline 2616 Paper 1
