Flaw Detection

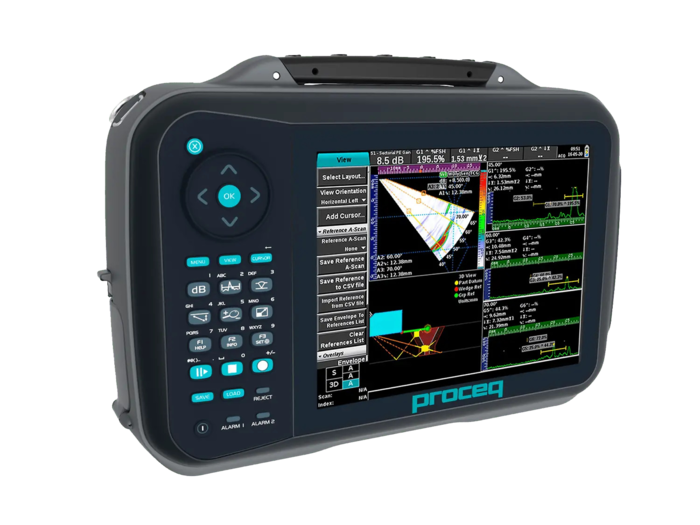

FD100 PA 16:16

Ultrasound Inspection for different type of materials, metal and not metal, such as composite or plastic
  • High level of performance for conventional portable flaw detection with the power of phased array
  • Comprehensive imaging capabilities cover many applications
  • The 3D scan plan helps to visualize the phased array beam coverage in the component


In different fields such as; Aerospace, Automotive, Railway, Naval / Ultrasonic Testing of Welds Using Phased Array / Phased Array Ultrasonic Testing of Polyethylene / Electrofusion Joints Flange Face Corrosion Inspection / Detection and the Sizing of Defects, Cracks, and Porosity

The best entry-level ultrasonic phased array flaw detector

High level of performance for conventional portable flaw detection with the power of phased array The same software workflow between modules makes the learning phased array familiar, easier, and quicker.


Comprehensive imaging capabilities cover many applications including; A, B, C, S, True Top, and End scans.


The 3D scan plan helps to visualize the phased array beam coverage in the component. It also shows the defect position using the 3D toolset to create valuable images.

Swiss Made
FD100 PA 16:16 Tech Specs
Tech Specs
2 UT & 1 l-PEX Channels

Transducer Socket
Lemo1 - BCD

Pulse Voltage
25 to 75 V (in 5 V steps)

1 to 5000 Hz

Gain Range
76 dB (0.1 dB steps)

PA: 200 KHz to 14 MHz
UT 200 KHz to 22 MHz

TFT 8.4"

Signal Enhancement
Digital filters, smoothing, contouring, rejection, averaging

16 active channels

Digitizing Frequency
65 MHz

Focal Laws

Maximum A Scan Length

Supported Scans
A, B, C, L, S-Scan, Merged, true Top & End

Number of Scans
1 (with up to 3 extracted A scans)

Number of Layouts

Path length, depth, surface distance, DAC, AWS, DGS, TGS

File Size
Up to 3 GB

Report Generation
Customisable pdf report, PNG screen capture, CSV file output option

1 or 2 axis (quadrature input)

English, German, French, Spanish, Russian, Chinese, Hungarian, Italian, Portuguese, and Japanese

Battery Life
6 Hrs

IP rating

Innovation Award
Other customers also purchased:

What are the types of NDT?
Many different NDT methods are available in the industry, each of them having its own advantages and limitations, but six of them are most frequently used: ultrasonic testing (UT), radiographic testing (RT), electromagnetic testing (ET), magnetic particle testing (MT), liquid penetrant testing (PT) and visual testing (VT). Other techniques include acoustic emission testing (AE), guided wave testing (GW), laser testing methods (LM), acoustic resonance testing (ART), leak testing (LT), magnetic flux leakage (MFL), vibration analysis (VA), and infrared testing (IR).

What is ultrasonic testing?
Ultrasonic (UT) inspection is a method of characterizing the thickness or internal structure of a piece using high-frequency sound waves. The frequencies used for ultrasonic testing are many times higher than the limit of human hearing, most commonly in the range from 500 kHz to 20 MHz. It is utilized in a comparative mode, where a real component is compared to a calibration/test piece where several types of defects have been included.

What materials can be tested with ultrasonic testing?
In industrial applications, the majority of materials can be inspected with UT including plastics, composites, and ceramics. The only materials that are not suitable for ultrasonic testing with conventional equipment are wood and paper products.

What defects can you find with a flaw detector?
A variety of flaws occur in materials and parts either during manufacturing or due to the aging effect in the field and can be found with a flaw detector: Void / Porosity Inclusions Cracks (subsurface or surface) Weld Bond Defects (incomplete melting, HAZ) Corrosion / Oxidation Abrasion / Erosion Machining or Grinding Damage Forging Flaws Casting Flaws Forming / Rolling Mill Flaws Adhesive / Sealant Debonding Composite / Honeycomb Delamination Wire Rope / Cable Flaws Pipe / Tubing Flaws

What does PA UT or PAUT mean?
Phased Array Ultrasonic Testing (PAUT) is an advanced non-destructive examination technique that utilizes a set of ultrasonic testing (UT) probes made up of numerous small elements, each of which is pulsed individually with computer-calculated timing.

Why use PAUT techologies?
Phased Array Ultrasonic Testing (PAUT) can be used to inspect more complex geometries that are difficult and much slower to inspect with single probes. PAUT can be used to inspect almost any material where traditional UT methods have been utilized and are often used for weld inspections and crack detection. The advantages of phased array technology over traditional UT derive from its ability to use multiple elements for steering, focusing, and scanning beams with a single transducer assembly. Beam steering generally referred to as sector scanning, may be used for mapping components at suitable angles. This will greatly simplify the inspection of complex geometry components.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Standards & Guidelines


  • Arrow, click names to download Standards & Guidelines ГОСТ 14782
  • Arrow, click names to download Standards & Guidelines ГОСТ 55724
  • Arrow, click names to download Standards & Guidelines EN 12668-1
  • Arrow, click names to download Standards & Guidelines ISO 18563-1
