Flaw Detection

UT8000

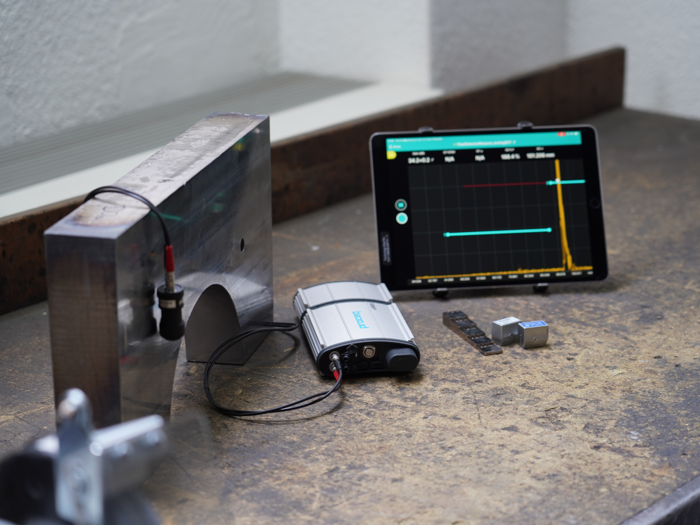

Portable ultrasound flaw detector for different types of material and components. Delivering fully traceable inspection data and rapid report creation.
  • Unmatched performance and ruggedness.
  • Simplicity to enhance productivity
  • Unique rewind and log-book functions

Applications:

Ultrasonic Inspection of Welds / Ultrasonic Inspection of Cast and Forged Metals / Ultrasonic Thickness Gauging and Lamination Assessments / Ultrasonic Corrosion Mapping / High Temperature Thickness Measurements / Detection and the Sizing of Defects, Cracks, and Porosity

Videothumbnail UT8000
Maximizes your inspection performance with the unique fully digital ultrasonic Flaw detector. Designed for field Ultrasonic inspections and Corrosion mapping.
/Images/Icons/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Swiss Quality
Swiss Quality for unmatched performance and ruggedness. A unit that can meet the most demanding environment and requirements.
/Images/Icons/New%20Web%20Icons/Web%20Icons_21-10-20_Collaboration.svg
Enhanced Productivity
No adaptation time needed: learn within 1hour and start your inspection with the most intuitive, user-friendly, feature-rich, intelligent software
/Images/Icons/New%20Web%20Icons/Web%20Icons_21-10-20_Peace%20of%20Mind.svg
Peace of Mind
The unique Rewind and log-book functions record and secure set-ups and inspection results, enabling on-demand assessment of inspection parameters. Including GPS locations, photos of the components and even audio messages.
Proceq Flaw Detector Live
Intuitive evolution for high performance

• Free updates & releases
• Customer-centric development
• Intelligent features to enhance your productivity

Detect flaws in many types of materials reliably and efficiently, with end-to-end traceability. This user-friendly app is the first of its kind, with the ability to rewind time for each indication as well as rich collaboration features including voice, photo and text annotations.

Every update brings exciting new capabilities. See the evolution so far…

• Free updates & releases
• Customer-centric development
• Intelligent features to enhance your productivity

Detect flaws in many types of materials reliably and efficiently, with end-to-end traceability. This user-friendly app is the first of its kind, with the ability to rewind time for each indication as well as rich collaboration features including voice, photo and text annotations.

Every update brings exciting new capabilities. See the evolution so far…

Proceq Flaw Detector Live
App Version 1

Top capabilities introduced with App Version 1:

• The world's first fully wireless UT instrument with intelligent software
• 400 Volt Square Pulser for even the most demanding jobs
• Corrosion Grid added to give more insights into your measurements
• Heat Map on corrosion for precise visualization of your findings
• Rewind time to replay the inspection process
• Full data access even in offline mode
• Secure cloud data sharing for significantly improved collaboration
• German, Chinese, Korean, Russian language support
• Remote support/data sharing in real-time
• Full Logbook automation to make your procedures traceable

… and much more.

Continuous software service, maintenance and bug fixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top capabilities introduced with App Version 1:

• The world's first fully wireless UT instrument with intelligent software
• 400 Volt Square Pulser for even the most demanding jobs
• Corrosion Grid added to give more insights into your measurements
• Heat Map on corrosion for precise visualization of your findings
• Rewind time to replay the inspection process
• Full data access even in offline mode
• Secure cloud data sharing for significantly improved collaboration
• German, Chinese, Korean, Russian language support
• Remote support/data sharing in real-time
• Full Logbook automation to make your procedures traceable

… and much more.

Continuous software service, maintenance and bug fixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.


Swiss Made
Software for Proceq Flaw Detector Live
Cloud App + Workspace
Tech Specs
Automated calibration
Velocity, zero offset

Test modes
Pulse echo, dual, through transmission or grid

Units
Millimeters, inches, or microseconds

Range
3 – 11760 mm at 5900 m/s

Velocity
100 – 10000 m/s

Zero offset
0 – 50 mm

Display delay
up to full range

Refracted angle
0° – 90° in 1° increments

Measurement gates
2x, fully independent

Gate start
Variable over entire displayed range

Gate height
Variable, 1% – 100% full-screen height, in increments of 1%

Alarms
Positive and negative threshold/curve

Measurement display locations
Up to 5 locations (manual or auto selection)

Echo-to-echo
Standard gate 2 – gate 1

DAC/TCG
Standard, up to 10 points, 110 dB dynamic TCG range

Special
DAC modes: Custom DAC (up to 6 curves), 20% – 80% view
UT8000 Tech Specs
Sensor
Tech Specs
Configuration
1 UT channel

Transducer Socket
Lemo 00

Pulse Voltage
100 to 400 V (square pulse)

PRF
2000 Hz

Gain Range
0-110 dB

Bandwidth
0.2 - 20MHz

Display
Any compatible Apple® iPad (iOS 11 and higher)

Memory
Up to 1 TB (depending on the iPad model)

Connections
Encrypted Wi-Fi connection to iPad

Signal Enhancement
Digital and analogue filters, rejection, averaging

Architecture
1 channel

Digitizing Frequency
125 MHz

Supported Scans
A-Scan, Grid

Measurements
Path length, depth, surface distance, DAC, AWS

Report Generation
Indication table, HTML export

Encoder
Ready

Languages
English, German, Italian, French, Spanish, Chinese, Japanese, Korean, Russian

Battery
Removable pack, 6x AA (NiMH), flight-safe

Battery Life
5 Hrs

Special Features
IP67

Innovation Award
Other customers also purchased:
FAQ

What does traditional or conventional UT mean?
Conventional Ultrasonic Testing (UT) inspection is a commonly-used non-destructive testing (NDT) technique that measures the propagation of mechanical vibrations (ultrasonic waves) through the material to examine properties, measure thickness, determine elasticity, and detect a range of discontinuities, including corrosion/erosion, flaws, cracks, and more. The instrument is worked by coupling a probe with a single/double cristal that transmits the waves inside the component that needs to be inspected.

What defects can you find with a flaw detector?
A variety of flaws occur in materials and parts either during manufacturing or due to the aging effect in the field and can be found with a flaw detector: Void / Porosity Inclusions Cracks (subsurface or surface) Weld Bond Defects (incomplete melting, HAZ) Corrosion / Oxidation Abrasion / Erosion Machining or Grinding Damage Forging Flaws Casting Flaws Forming / Rolling Mill Flaws Adhesive / Sealant Debonding Composite / Honeycomb Delamination Wire Rope / Cable Flaws Pipe / Tubing Flaws
Any questions?
Get in touch with us...
Standards & Guidelines

Standards
  • Arrow, click names to download Standards & Guidelines ASTM E317 - 16
  • Arrow, click names to download Standards & Guidelines EN 12668-1
