Proceq Ground Penetrating Radars

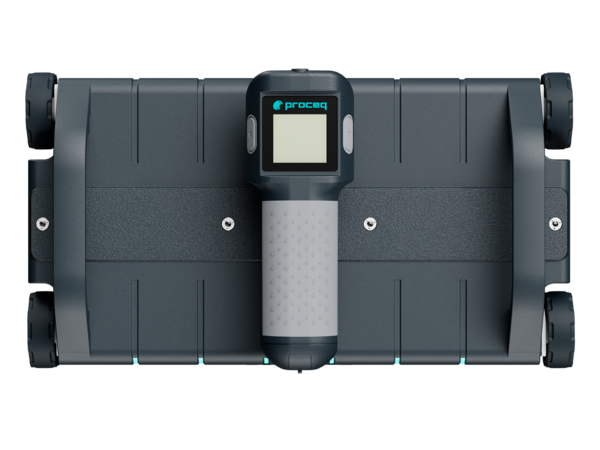

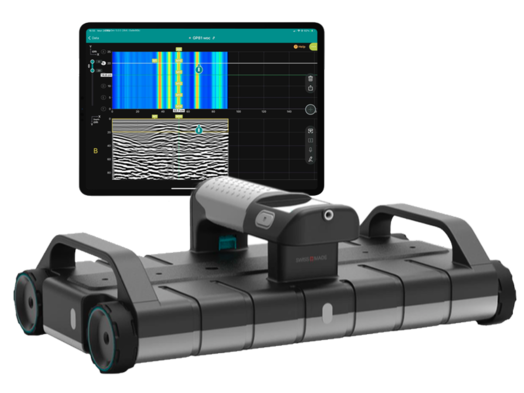

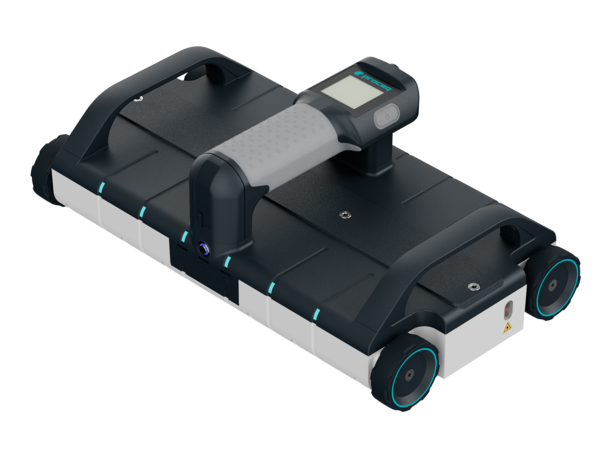

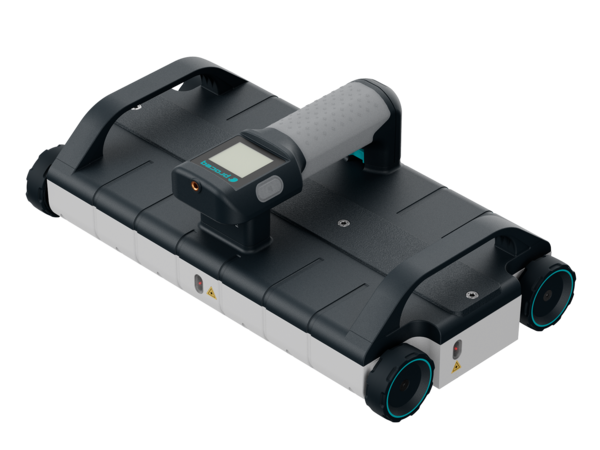

GP8100

Highly productive portable concrete GPR array, enabling quick object detection and superior data collection
  • Large scan width, high scan rate, and best-in-class penetration depth.
  • Fast detection of objects of any size with the superline scan view
  • Dense, accurate GPR data collection in one superline scan

Applications:

Concrete inspection of large areas in all buildings or bridge decks / Object detection and damage prevention before drilling, coring or cutting into concrete / GPR data collection for concrete structural assessment and post-processing data

Videothumbnail GP8100
Revolutionary portable concrete GPR array with never-seen-before data clarity
/Media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Productivity-10.svg
Productivity

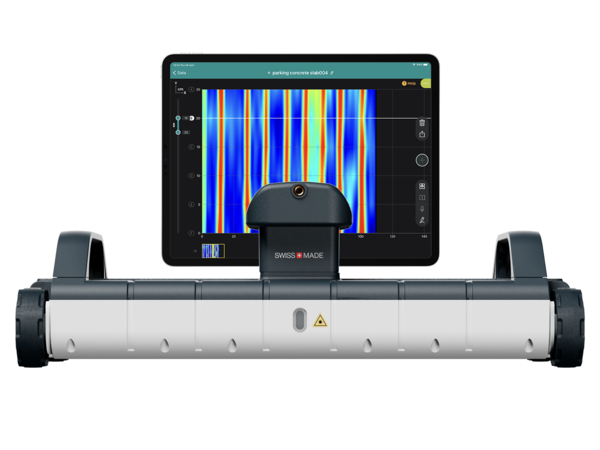

Boost scanning efficiency with 25cm effective scan width and 80cm penetration depth, one scan is equivalent to 6 classical line scans
/Media/Brand/New%20Web%20Icons/Web%20Icons_Visualization.svg
Visualization
Detecting objects of all sizes and marking on concrete surfaces has never been so easy and fast with the superline scan view
/Media/Brand/New%20Web%20Icons/Web%20Icons_Density.svg
Density
The high scan rate of 1'200 scans/s enables a very dense GPR data collection in only one superline scan, which can be visualized in 6 classical line scans
Proceq GPR App
The next stage of evolution
  • Free updates & releases
  • Customer-centric development
  • Unparalleled features to optimize workflow

See into concrete deeply and clearly, detect objects effortlessly and reliably, collaborate anywhere at any time. This intelligent and feature-rich app is constantly advancing ahead of the rest. And since it is available on subscription, you have immediate access to the continuous innovation and over-the-air updates as we evolve.

Over 4000 users have trusted us so far, leveraging the new capabilities with every version. See the evolution so far from the very first App Version 1, up to the latest version.

  • Free updates & releases
  • Customer-centric development
  • Unparalleled features to optimize workflow

See into concrete deeply and clearly, detect objects effortlessly and reliably, collaborate anywhere at any time. This intelligent and feature-rich app is constantly advancing ahead of the rest. And since it is available on subscription, you have immediate access to the continuous innovation and over-the-air updates as we evolve.

Over 4000 users have trusted us so far, leveraging the new capabilities with every version. See the evolution so far from the very first App Version 1, up to the latest version.

Proceq GPR App
App Version 1

Top capabilities introduced with App Version 1:

  • The world’s first wireless and handheld SFCW GPR
  • Non-Migrated view allowing to see hyperbolas
  • Migrated view allowing to see the objects
  • Improved linearization algorithm increasing depth accuracy
  • The world’s first cloud storage for GPR measurements
  • Cloud data sharing for significantly improved collaboration
  • Cloud support allowing quality control and updates information
  • SEG-Y files export for data post-processing
  • Direct enter of gain to refine the views
  • Direct enter of dielectric constant to refine the views

… and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top capabilities introduced with App Version 1:

  • The world’s first wireless and handheld SFCW GPR
  • Non-Migrated view allowing to see hyperbolas
  • Migrated view allowing to see the objects
  • Improved linearization algorithm increasing depth accuracy
  • The world’s first cloud storage for GPR measurements
  • Cloud data sharing for significantly improved collaboration
  • Cloud support allowing quality control and updates information
  • SEG-Y files export for data post-processing
  • Direct enter of gain to refine the views
  • Direct enter of dielectric constant to refine the views

… and much more.

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Proceq GPR App
App Version 2

Top new capabilities introduced with the free upgrade:

  • Unlocked live-wire (EM) detection kit
  • Show entire long scans at once with horizontal scaling at will
  • A-scan envelope curve
  • Boosted B-scan image quality
  • Delete measured lines in reverse order during an Area Scan
  • German, Japanese, Chinese and Korean language support
  • Estimate the dielectric constant using hyperbola fit
  • Share multiple measurements with a single URL
  • Orient yourself in 3D view with axes (and double-tap planes)
  • Adjust the gain on a depth range using Focus Tool and Auto Gain

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top new capabilities introduced with the free upgrade:

  • Unlocked live-wire (EM) detection kit
  • Show entire long scans at once with horizontal scaling at will
  • A-scan envelope curve
  • Boosted B-scan image quality
  • Delete measured lines in reverse order during an Area Scan
  • German, Japanese, Chinese and Korean language support
  • Estimate the dielectric constant using hyperbola fit
  • Share multiple measurements with a single URL
  • Orient yourself in 3D view with axes (and double-tap planes)
  • Adjust the gain on a depth range using Focus Tool and Auto Gain

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Proceq GPR App
App Version 3

Top new capabilities introduced with the free upgrade:

  • Augmented Reality: superimpose the Time-Slice onto the scanned area
  • Augmented Reality: superimpose the 3D view into the volume below the scan
  • New high-resolution Live Wire overlay
  • Export up to 30 files at a time in SEGY format or shared via URL
  • New tags and the geolocation in Logbook
  • High-resolution snapshots for data clarity
  • New color mapping of the non-migrated view
  • Real-time collaboration with LTE-enabled iPad
  • Depth-slice slider for 3D view
  • Smooth zooming and scaling of axes

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top new capabilities introduced with the free upgrade:

  • Augmented Reality: superimpose the Time-Slice onto the scanned area
  • Augmented Reality: superimpose the 3D view into the volume below the scan
  • New high-resolution Live Wire overlay
  • Export up to 30 files at a time in SEGY format or shared via URL
  • New tags and the geolocation in Logbook
  • High-resolution snapshots for data clarity
  • New color mapping of the non-migrated view
  • Real-time collaboration with LTE-enabled iPad
  • Depth-slice slider for 3D view
  • Smooth zooming and scaling of axes

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Proceq GPR App
App Version 4

Top new capabilities introduced with the free upgrade:

  • Enrich your data with hand-scribbled annotations
  • Work in WiFi restricted areas using a cable connection (GP8800)
  • User customizable buttons on the sensors for a personalized workflow
  • Dynamic millimeter accuracy roll-back for physical marking on the concrete
  • Segment your 3D View within color with True ColorDepth
  • Expand your Area Scan with the Flexible Grid and up to 16m2
  • Unlocked measuring in tight and congested space (GP8800)
  • Export logbook, snapshots and metadata in HTML for your reporting
  • Added new smart background removal filters

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Top new capabilities introduced with the free upgrade:

  • Enrich your data with hand-scribbled annotations
  • Work in WiFi restricted areas using a cable connection (GP8800)
  • User customizable buttons on the sensors for a personalized workflow
  • Dynamic millimeter accuracy roll-back for physical marking on the concrete
  • Segment your 3D View within color with True ColorDepth
  • Expand your Area Scan with the Flexible Grid and up to 16m2
  • Unlocked measuring in tight and congested space (GP8800)
  • Export logbook, snapshots and metadata in HTML for your reporting
  • Added new smart background removal filters

… and much more

Continuous software service, maintenance and bugfixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Proceq GPR App
App Version 5

Top new capabilities introduced with the free upgrade:

  • Interated with WORKSPACE, for collaboration and post-analysis of all your GPR data
  • Compatibility with the GP8100 sensor to unleash unmet productivity gains
  • Superline scan visualization instantly displays the detected objects in never-seen clarity
  • Split view combining the superline scan view and visualization of any of the 6 classical line scans
  • Flexible grid for area scan up to 100m2, reaching a gigantic tomography capacity
  • Stop/resume area scan, giving you flexibility and freedom in the workflow
  • Search/filter function, easing the arrangement, classification and searching of measurement files
  • Frequency domain replaces time domain for faster data transfer between sensor and software

Top new capabilities introduced with the free upgrade:

  • Interated with WORKSPACE, for collaboration and post-analysis of all your GPR data
  • Compatibility with the GP8100 sensor to unleash unmet productivity gains
  • Superline scan visualization instantly displays the detected objects in never-seen clarity
  • Split view combining the superline scan view and visualization of any of the 6 classical line scans
  • Flexible grid for area scan up to 100m2, reaching a gigantic tomography capacity
  • Stop/resume area scan, giving you flexibility and freedom in the workflow
  • Search/filter function, easing the arrangement, classification and searching of measurement files
  • Frequency domain replaces time domain for faster data transfer between sensor and software

Swiss Made
Software for Proceq GPR App
Software / Workspace App
Tech Specs
Measurement modes
Superline Scan (1000m / 3281 ft)
Area Scan (with Flexible Grid up to 100m2 / 1076 ft2)

Review modes
Superline scan¹
A-scan (incl. envelope)
Migrated view
Non-migrated view
Split view¹
Time-Slice view² Basic
3D view
AR

Advanced visualization
Time-Slice view Pro
3D view
Augmented Reality (AR)

Reporting
Workspace integration
Automatic Logbook
SEG-Y export
Instant report generation
Share via URL

Export formats
JPG
PNG
CSV
SEGY
HTML

Display Unit Specs*:
Latest Apple® iPad recommended
(iPad with iOS 11.0 and higher)
Screen size: From 7.9" to 12.9"
Resolution: Up to 2732-by-2048
Memory: Up to 2TB
Weight: Down to 301 g / 10.6 oz
Camera: Up to 12MP Wide and 10MP Ultra Wide
Optional: USB-C, 5G, Face ID

Display Unit Sensors*:
LiDAR Scanner (optional)
Three-axis gyro
Accelerometer
Ambient light sensor
Barometer
Built-in GPS/GNSS

1. GP8100 only; 2. GP8000 & GP8100 only
* Depending on iPad model

GP8100 Tech Specs
Sensor
Tech Specs
Radar technology
Stepped-frequency continuous-wave (SFCW) GPR

Modulated frequency range
400 – 4000 MHz

Penetration depth
80 cm / 31.5 in

Battery
Flight-safe, removable pack, 8x AA (NiMH)

Dimensions
41.5 x 22.5 x 13.2 cm
16.3 x 8.9 x 5.2 in

Weight
3.0 kg / 6.6 lbs (excl. battery pack)

Ground clearance
0.8 cm / 0.32 in

Antennas
6

Antenna distance to edge
8.3 cm / 3.27 in

Special features
All-wheel drive with high-traction wheels and laser light guidance
USB-C tethering to power bank

IP rating
IP54

Connections
Wi-Fi (802.11n) to display unit
USB-C for Wi-Fi restricted areas

Autonomy
3h (Up to 8 hours with off-the-shelf 10'000 mAh power bank, not included)

Innovation Award
Other customers also purchased:
Accessories
79330230

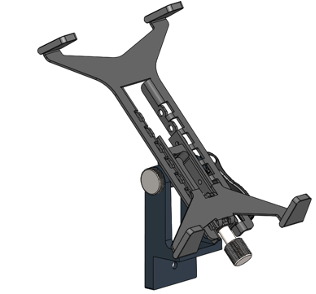

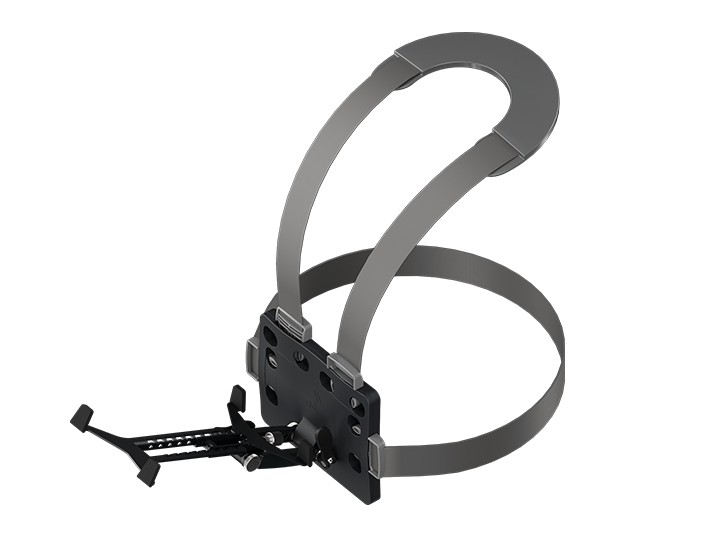

Device tablet holder
Device tablet holder
Device tablet holder
Device tablet holder (79330230)
39340200

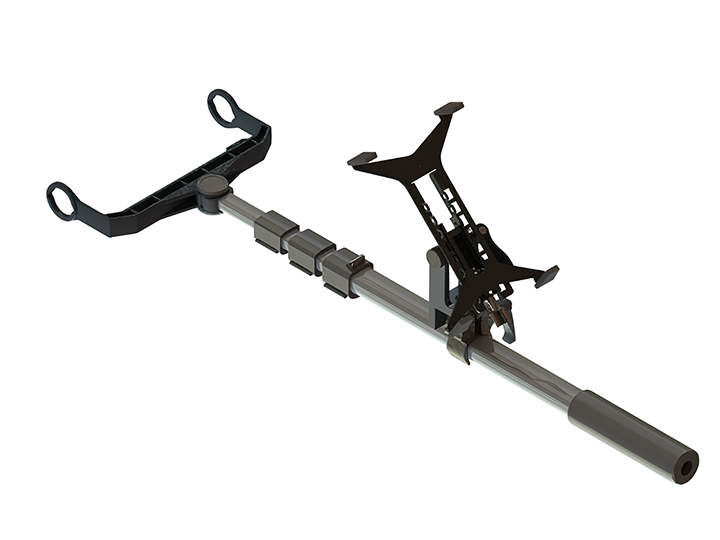

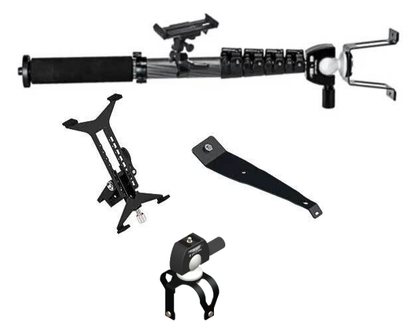

Telescopic rod with tablet holder
Telescopic rod with tablet holder
Telescopic rod with tablet holder
Telescopic rod with tablet holder (39340200)
FAQ

What is GPR?
GPR is a compact device that scans the subsurface in a non-destructive way. It can penetrate the surface from a few cm down to tens or hundreds of meters, based on soil conditions and antenna characteristics.

What are the types of NDT?
Many different NDT methods are available in the industry, each of them having its own advantages and limitations, but six of them are most frequently used: ultrasonic testing (UT), radiographic testing (RT), electromagnetic testing (ET), magnetic particle testing (MT), liquid penetrant testing (PT) and visual testing (VT). Other techniques include acoustic emission testing (AE), guided wave testing (GW), laser testing methods (LM), acoustic resonance testing (ART), leak testing (LT), magnetic flux leakage (MFL), vibration analysis (VA), and infrared testing (IR).

What is SEGY format?
The SEGY (sometimes SEG Y) file format is a commonly used data standard for the exchange of geophysical data. It is mainly used for Seismic data, but also for saving GPR raw data. Our GPR SEGY files can also be used for post-processing data.

What is acquisition time?
Time in GPR has different meanings: Time Window = the maximum recording time shown on the data. This can be used to calculate the depth. Acquisition Time = how long it takes to finish one A-scan measurement with a perfect electronics instrument for pulsed GPR. However, GPR devices are not able to collect one A-scan in a single pass and, to reduce noise, normally an A-scan is measured multiple times, and then results are averaged together. So the Acquisition Time is longer than the Time Window.

What is Stepped Frequency Continuous Wave?
Unlike Pulsed-GPR broadcasting a signal centered around one frequency, resulting in a trade-off of resolution and depth for inspecting, stepped frequency continuous wave (SFCW) has the advantage to broadcast an ultra wide-band range of modulated frequencies. The combination of all frequency response enables detection of objects from shallow to deep depth in one scan.

What does GPR stand for?
GPR is the acronym for Ground Penetrating Radar, also known as Georadar, Ground Penetration Radar, or Ground Probing Radar.

How does GPR work?
GPR emits electromagnetic (EM) waves to the subsurface and calculates the time these waves need to travel through the various subsurface material and get back to the GPR receiver. This two-way travel-time, along with a few other parameters such as the dielectric, provide the user an estimate of the target depth.

What applications does GPR cover?
GPR is a very useful tool in a variety of applications. Most popular uses of GPR are the non-destructive testing and mapping of objects inside the concrete, such as rebars, pipes, ducts, and cables. Other applications are infrastructure assessment (bridge decks, roads), utility location, archaeology, forensics, environmental studies (mapping contaminants), shallow geology and geophysics, mine exploration and safety, transportation (pavement thickness and density, ballast fouling), agriculture, military (UXO), sedimentology, glaciology, quarrying, space exploration.

Will my GPR work as standalone unit or can it also complement other methods?
Both. GPR can be used as a standalone unit if you work on specific applications and you are happy with a limited set of feedback and information. However, it is not a tool for every job you may have onsite. In concrete applications, GPR can be used in combination with Ultrasound Tomography (Pundit Array: https://bit.ly/3cBBeTE) and Eddy Current Rebar locators (Profometer: https://bit.ly/39B0QhJ) to get a comprehensive approach.

How deep can GPR penetrate the concrete?
This depends on how young the concrete is; young concrete is not well cured, has more water and thus the radar does not penetrate that deep. Older concrete is usually drier and thus better for GPR.

What is the most used data format for GPR?
Typically, GPR exports data in the SEG-Y format. This can be easily converted to other formats like .xls, .dxf or .kml if needed for further visualization of data.

Is Screening Eagle GPR certified?
Yes. Our equipment meets CE, IC, FCC, ETSI-EN RSS-220 and RoHS regulations.

Do I need to calibrate my GP8x00?
No. GPR self-calibrates each time you turn it on. There is no need to send your unit back to a repair/calibration center.

Does GP8x00 work on all surfaces?
GP8x00 has wheels and a certain clearance from the surface. If the wheels can move over the surface the GPR can collect data. Moving over conductive materials, e.g., aluminum, copper etc. can limit or even zero the depth penetration of your antenna.

Will my GP8x00 GPR collect any data if I do not move?
No. Data collection on GPR systems (GPx and GSx) is triggered by wheel movement. If you do not move the radar, then no data collection is happening. The wheel is acting also as an odometer, giving local coordinates on the x-axis direction.

Does GPR calculate the diameter of a rebar?
GPR is not the ideal tool to calculate the rebar size. There is a technique where you can get approximate values for the rebar size by measuring the depth to the rebar from both in line and cross line data and the difference will give an approximate diameter. There are more accurate and easier instruments to detect the rebar size and cover (Profometer: https://bit.ly/39B0QhJ) which can be used in combination with GPR for a holistic approach to your concrete investigations.

I have a rebar locator, why should I buy a GPR?
Rebar locators (Profometer: https://bit.ly/39B0QhJ) are the most economical and accurate solutions to map the first layer of rebars in concrete. They accurately measure the rebar cover independently of concrete properties (dielectric). GPR can detect metallic and non-metallic targets that are deeper inside the concrete and can also detect larger voids inside the concrete, plastic conduits, and other non-metallic targets, as well as find the slab thickness and concrete bottom. If you already have a rebar locator, adding a GPR will give you complementary capabilities to deliver best in class results to your customers.

Can I detect voids and delamination using GPR?
Air inside the concrete results in a partial reflection of the GPR signal, which allows you to detect larger voids. Thin delamination and small voids only give a small reflection and can typically be visualized using GPR. Contrary to GPR, Ultrasound tomography (Pundit Array: https://bit.ly/3cBBeTE) results in a full reflection when interfacing air. This makes Ultrasound the ideal solution for investigation delaminations and small voids.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Standards & Guidelines

Standards

Asia-Pacific
  • Arrow, click names to download Standards & Guidelines ACI 228.2R.98
  • Arrow, click names to download Standards & Guidelines ASTM D4748-10
  • Arrow, click names to download Standards & Guidelines ASTM D6087-08
  • Arrow, click names to download Standards & Guidelines ASTM D6432-11
  • Arrow, click names to download Standards & Guidelines EN 302066 - ETSI

Guidelines

  • Arrow NCHRP Synesis 255
  • Arrow SHRP H-672
  • Arrow SHRP S-300
  • Arrow SHRP S-325
